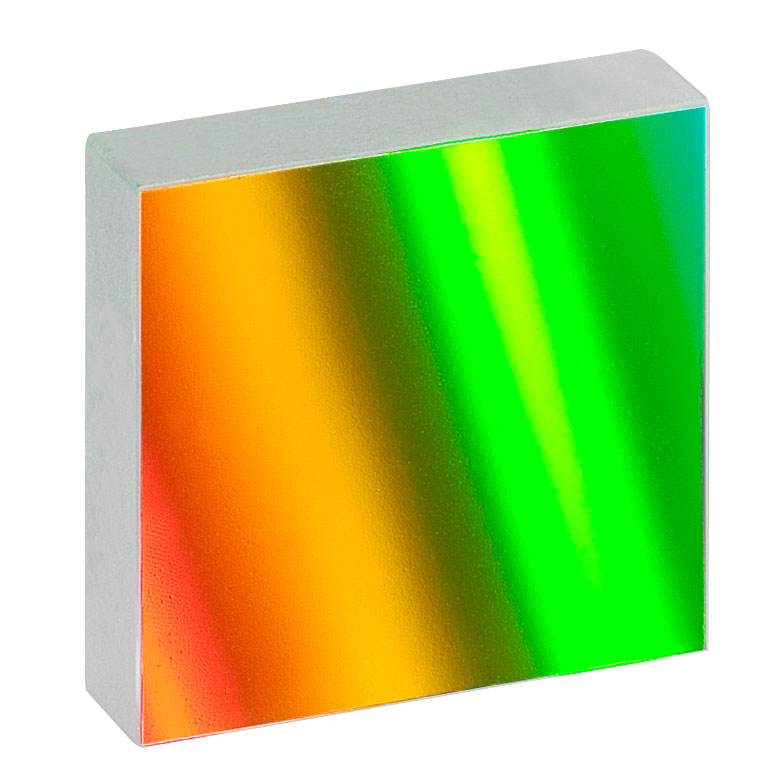

T-GR25-0303 - Ruled Reflective Diffraction Grating, 300/mm, 300 nm Blaze, 25 x 25 x 6 mm

Fosco Connect Part No.: T-GR25-0303

$ 198.00 or

T-GR25-0303 - Ruled Reflective Diffraction Grating, 300/mm, 300 nm Blaze, 25 x 25 x 6 mm

Product Drawing

300 nm Blaze Wavelength
High Grating Efficiency of 60 to 80% at Blaze Wavelength
Low Ghosting: <0.5% of Primary Reflection
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 or 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
Blaze Wavelength 300 nm
Grooves/mm 300
Blaze Angle 2° 34'
Dispersion 3.33 nm/mrad
