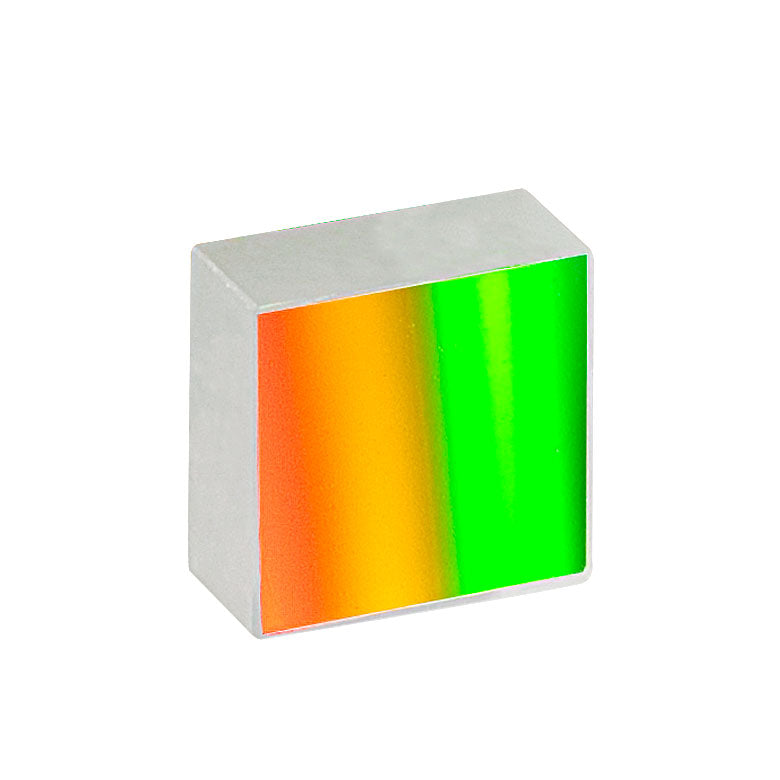

T-GR25-0616 - Ruled Reflective Diffraction Grating, 600/mm, 1.6 µm Blaze, 25 x 25 x 6 mm

Fosco Connect Part No.: T-GR25-0616

$ 208.00 or

T-GR25-0616 - Ruled Reflective Diffraction Grating, 600/mm, 1.6 µm Blaze, 25 x 25 x 6 mm

Product Drawing

Blaze Wavelengths from 750 to 1600 nm

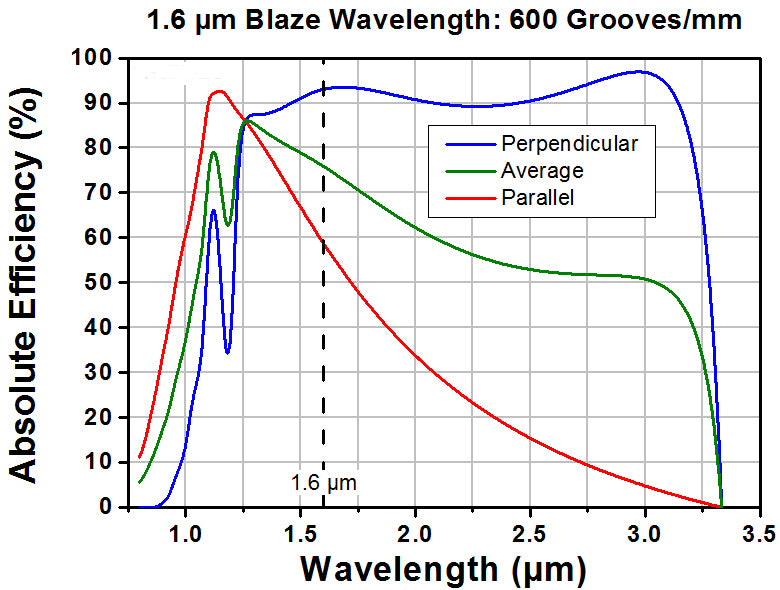

High Grating Efficiency of 60 to 80% at Blaze Wavelength
Low Ghosting, <0.5% of Parent Line
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
Blaze Wavelength 1.6 µm
Grooves/mm 600

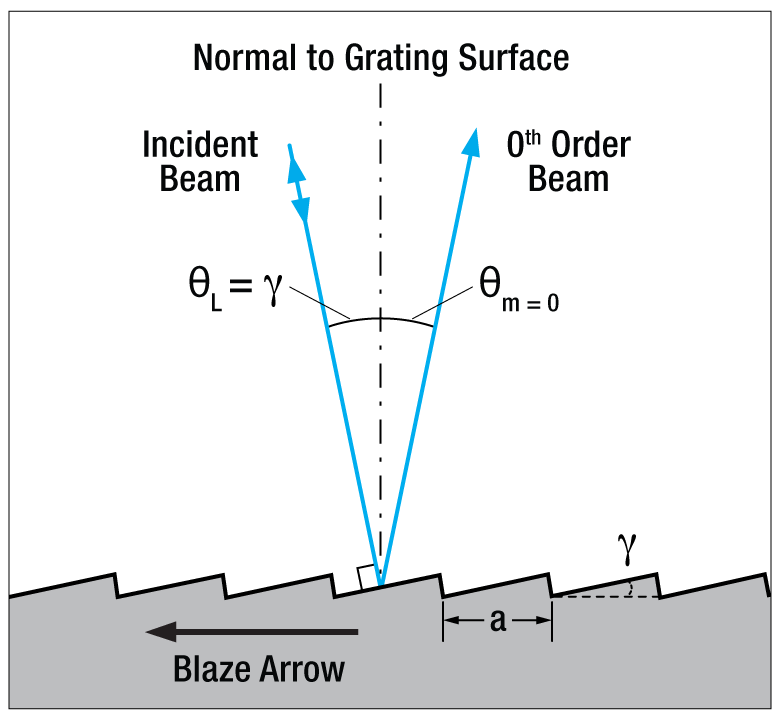

Blaze Angle 28° 41'
Dispersion 1.46 nm/mrad
