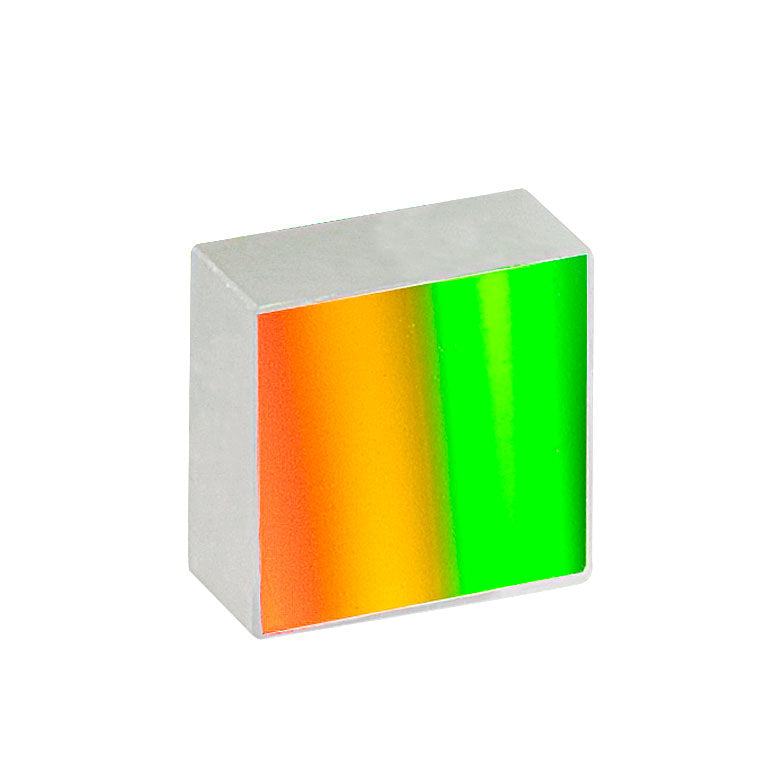

Name: T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm
Brand: Fosco Connect
SKU: T-GR25-1205
Price: 220.00 USD
Availability: InStock

foscoconnect.com
sales@foscoconnect.com
(510) 319-9878
Silicon Valley, CA, USA

$T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm$

Roll over image to zoom in Click on image to zoom

$T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm$ $T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm$ $T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm$

T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm

Product Drawing

Blaze Wavelengths of 400 or 500 nm

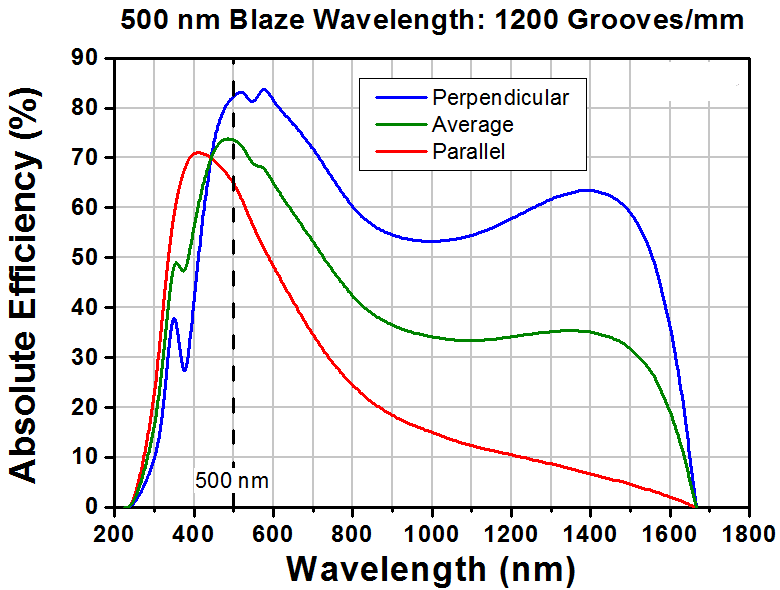

High Grating Efficiency of 60% to 80% at Blaze Wavelength
Low Ghosting, <0.5% of Parent Line
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
Blaze Wavelength 500 nm
Grooves/mm 1200
Blaze Angle 17° 27'
Dispersion 0.80 nm/mrad

T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm

T-GR25-1205 - Ruled Reflective Diffraction Grating, 1200/mm, 500 nm Blaze, 25 x 25 x 6 mm
