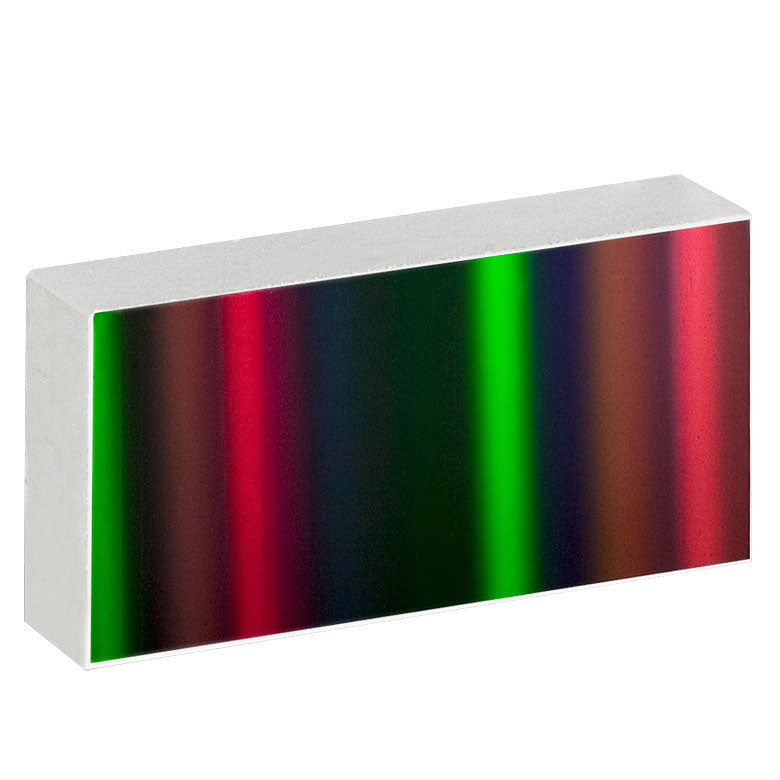

T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm

$T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm$

$T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm$ $T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm$ $T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm$

T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm

Fosco Connect Part No.: T-GR2550-10106

$ 580.00 or

T-GR2550-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 25.0 x 50.0 x 9.5 mm

Product Drawing

Design Wavelengths of 3.1 µm, 3.5 µm, or 10.6 µm
Polarized Efficiency of 80 to 95% at Design Wavelength
Low Ghosting: <0.5% of Primary Reflection
Aluminum Reflective Coating
Pyrex Substrate with 75 to 450 Grooves/mm
Produced from Ruled Original
Damage Thresholds:
- CW Laser: 250 W/cm²
- Pulsed Laser: 3.5 J/cm² (200 ns Pulse)
- Dimensions (W x H x D) 25.0 mm x 50.0 mm x 9.5 mm
- Design Wavelength 10.6 µm
- Grooves/mm 100
- Blaze Angle 27°
- Dispersion 8.5 nm/mrad

Item # Suffix		-10106
Design Wavelength		10.6 µm
Blaze Angle		27°

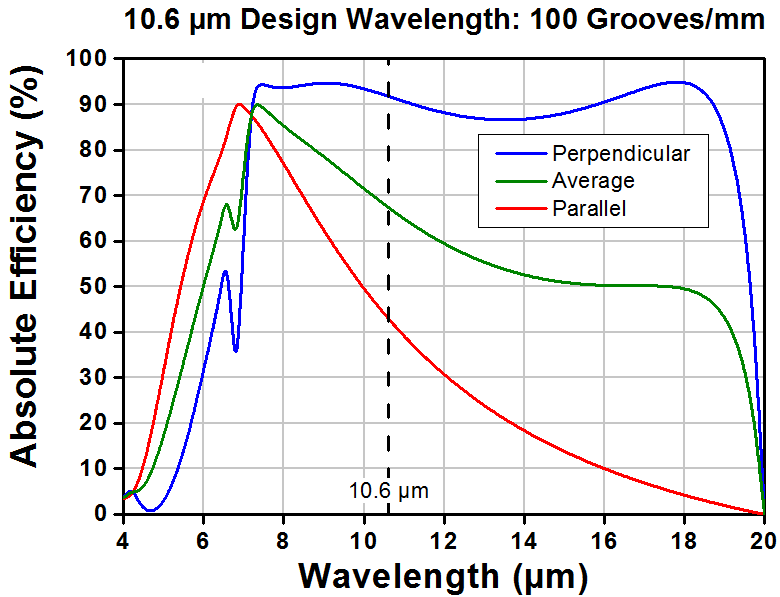

Min Polarized Absolute Efficiency		88%
Optimum Efficiency Wavelength Range		9.0 - 11.0 µm
Grooves/mm		100
Dispersion		8.5 nm/mrad
Surface Quality		60-40 Scratch-Dig
Clear Aperature		90% of Length and Width
Damage Threshold	Pulsed	3.5 J/cm² (200 ns Pulse)
Damage Threshold	CW	250 W/cm² at 1064 µm (Typical)
Dimensions (W x H x D)		Item # Prefix GR1325: 12.5 mm x 25.0 mm x 9.5 mm (0.49" x 0.98" x 0.37") Item # Prefix GR1550: 25.0 mm x 50.0 mm x 9.5 mm (0.98" x 1.97" x 0.37")
Dimensional Tolerances		±0.5 mm
