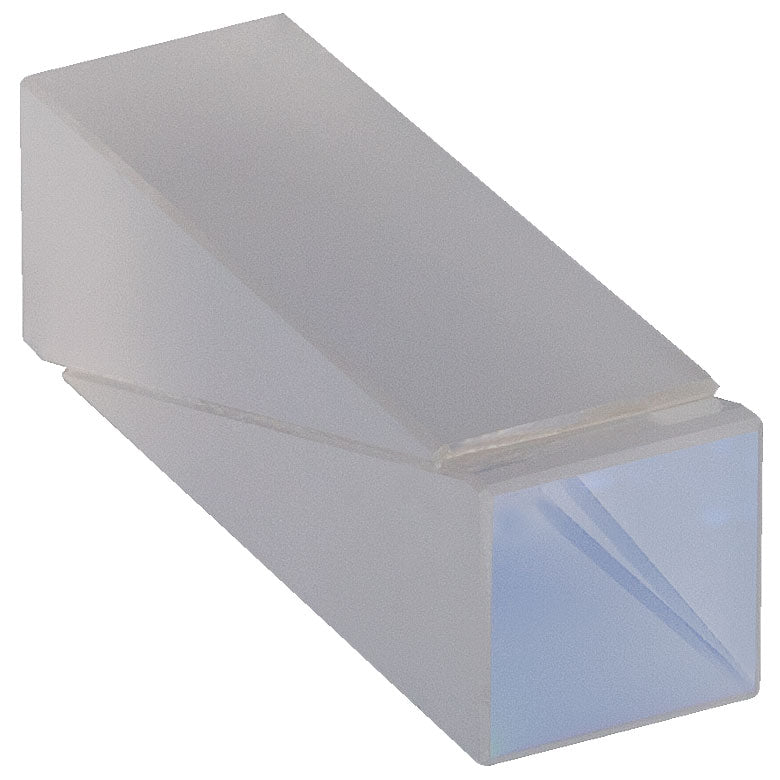

T-GTH10-B - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, ARC: 650 -1050 nm
T-GTH10-B - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, ARC: 650 -1050 nm
- Wide Field of View: 40° Typical (FOV1 + FOV2; See Calcite Tab)
- High Extinction Ratio: 100 000:1
- 350 nm to 2.3 μm Operation for Uncoated Prisms
- AR-Coated Versions for 350 - 700 nm or 650 - 1050 nm Range
- Highest Grade Optical Calcite
- Cemented Prisms
| Damage Threshold Specifications | |
|---|---|
| Laser Output | Damage Threshold |
| Pulsed | 2 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø0.476 mm |
| CW | 2 kW/cm at 1064 nm, Ø0.092 mm |
