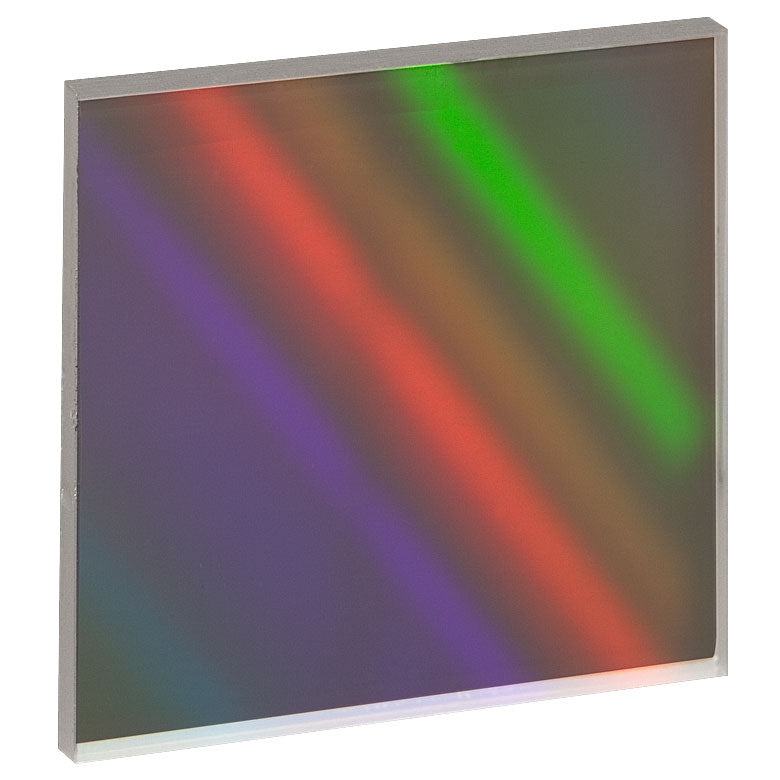

T-GTI50-03A - NIR Transmission Grating, 300 Grooves/mm, 31.7° Groove Angle, 50 mm x 50 mm
T-GTI50-03A - NIR Transmission Grating, 300 Grooves/mm, 31.7° Groove Angle, 50 mm x 50 mm
- Designed for Optimum Performance in the Near Infrared
- Ideal for Fixed Grating Applications
- Schott B270 Substrate
- Custom Sizes Available Upon Request
Warning:
Optical gratings can be easily damaged by moisture, fingerprints, aerosols, or the slightest contact with any abrasive material. Gratings should only be handled when necessary and always held by the sides. Latex gloves or a similar protective covering should be worn to prevent oil from fingers from reaching the grating surface. No attempt should be made to clean a grating other than blowing off dust with clean, dry air or nitrogen. Solvents will likely damage the grating's surface.
| Common Specifications | |
|---|---|
| Substrate Material | Schott B270 |
| Thickness | 3 mm Nominal |
| Dimensional Tolerances | ±0.5 mm |
| Thickness Tolerance | ±0.5 mm |
