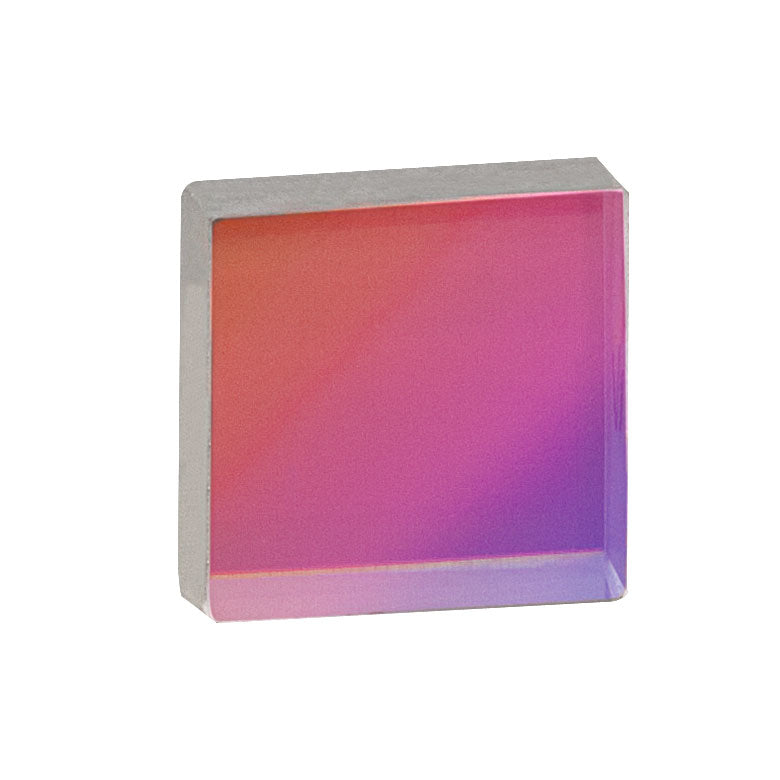

T-GTU13-12 - UV Transmission Grating, 1200 Grooves/mm, 36.9° Groove Angle, 12.7 mm x 12.7 mm
Roll over image to zoom in Click on image to zoom
T-GTU13-12 - UV Transmission Grating, 1200 Grooves/mm, 36.9° Groove Angle, 12.7 mm x 12.7 mm

T-GTU13-12 - UV Transmission Grating, 1200 Grooves/mm, 36.9° Groove Angle, 12.7 mm x 12.7 mm

Fosco ConnectSKU: T-GTU13-12
Price:
$ 160.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GTU13-12 - UV Transmission Grating, 1200 Grooves/mm, 36.9° Groove Angle, 12.7 mm x 12.7 mm

Product Drawing

  • Optimum Performance in the UV
  • Ideal for Fixed Grating Applications
  • 1/2" Square
  • Groove Densities Available: 300, 600, 830, or 1200 Grooves/mm
General Specifications
Substrate UV-Grade Fused Silica
Thickness (Typical) 2 mm
Dimensional Tolerance ±0.5 mm
Thickness Tolerance ±0.2 mm
Surface Quality 60-40 Scratch-Dig
