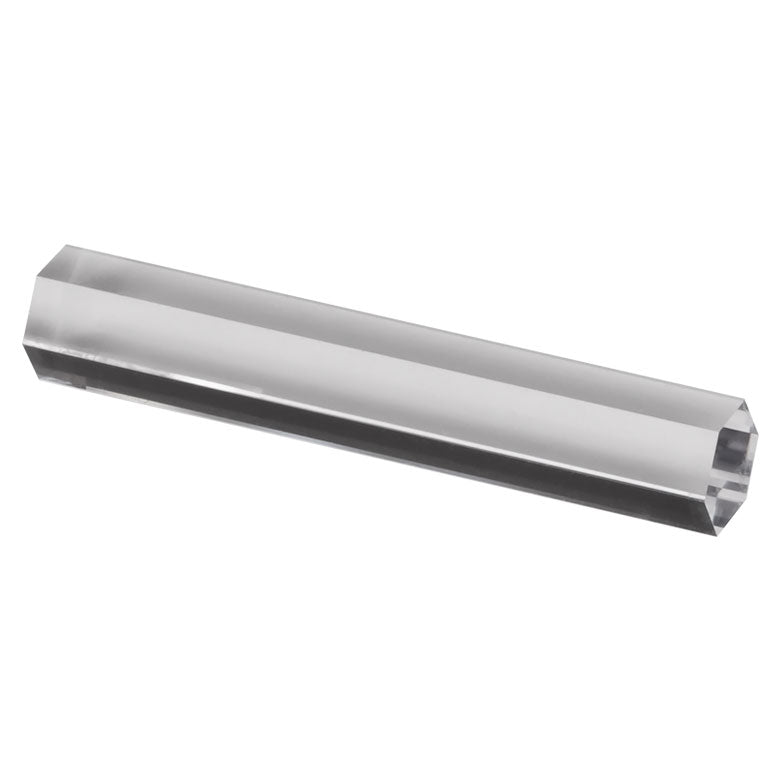

T-HMR425 - 25.0 mm UVFS Hexagonal Light Mixing Rod, Aperture = 4.0 mm, Uncoated
T-HMR425 - 25.0 mm UVFS Hexagonal Light Mixing Rod, Aperture = 4.0 mm, Uncoated
- Hexagonal Rods for Mixing Light
- Convert a Non-Uniform Beam into a Homogeneous Profile

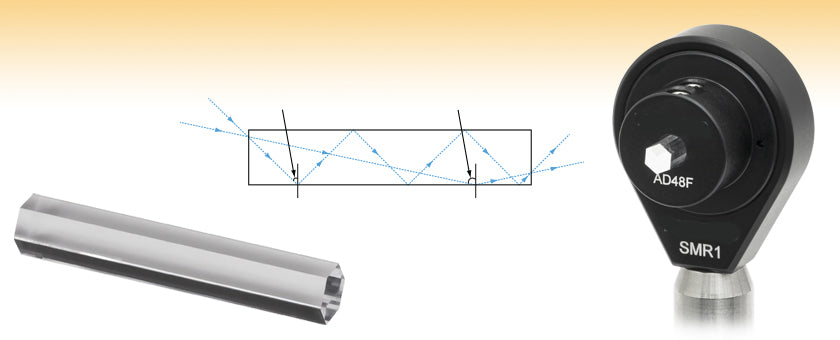

- Total Internal Reflection Transmits Light Through the Rod
- UV Fused Silica (UVFS) Substrate
- Available Uncoated or with Broadband Antireflective (BBAR) Coating Options:
- 350 - 700 nm BBAR Coating
- 650 - 1050 nm BBAR Coating
- Preserves NA
- For Other Mixing Rod Lengths and AR Coatings
| Item # | AR Coating Range | Reflectance over Coating Range (Avg.) |
Damage Threshold |
|---|---|---|---|
| T-HMR425 | Uncoated | - | - |
| T-HMR425-A | 350 - 700 nm | <0.5% at 0° AOI | 7.5 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.491 mm |
| T-HMR425-B | 650 - 1050 nm | <0.5% at 0° AOI | 0.246 J/cm2 at 800 nm, 99 fs, 1 kHz, Ø0.166 mm 7.5 J/cm2 at 810 nm, 10 ns, 10 Hz, Ø0.133 mm |
