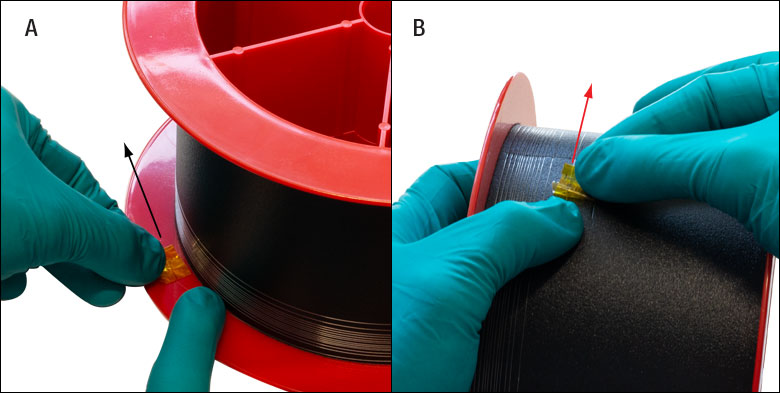

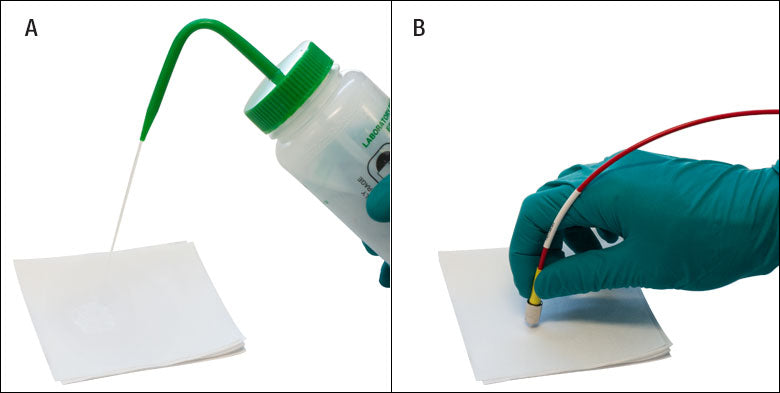

T-IRZS23 - Single Mode ZBLAN Fiber, 2.3 - 4.1 µm, 0.19 NA, 10.5 µm MFD, Unit Pricing Per Meter
T-IRZS23 - Single Mode ZBLAN Fiber, 2.3 - 4.1 µm, 0.19 NA, 10.5 µm MFD, Unit Pricing Per Meter

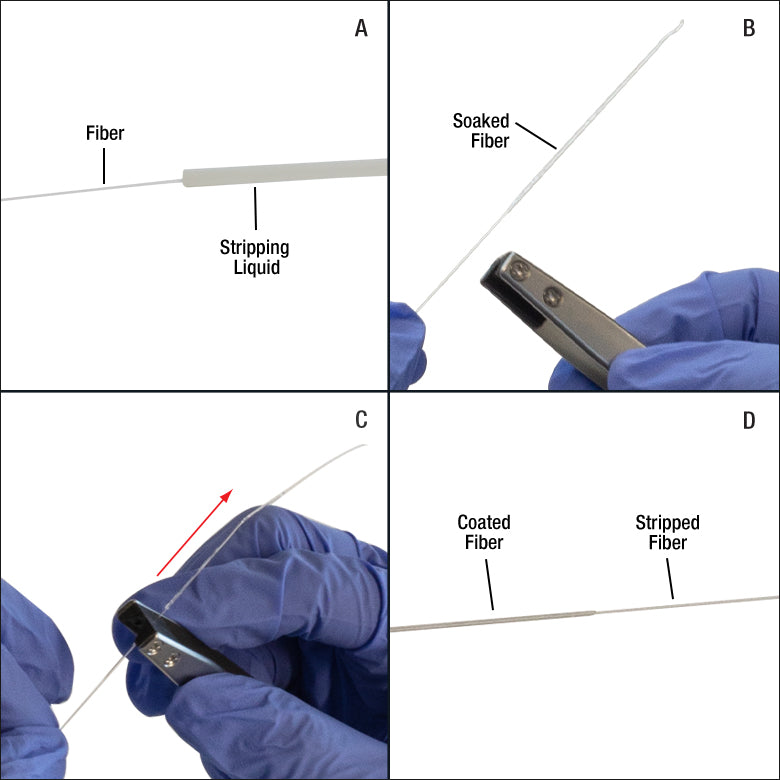

Features
- Draw Facility
- Fluorozirconate (ZBLAN)† for 285 nm - 4.1 µm
- Fluoroindate (InF3) for 310 nm - 5.5 µm
- Single Mode Wavelength Range:
- 2.3 µm - 4.1 µm for ZLBAN
- 3.2 µm - 5.5 µm for InF3

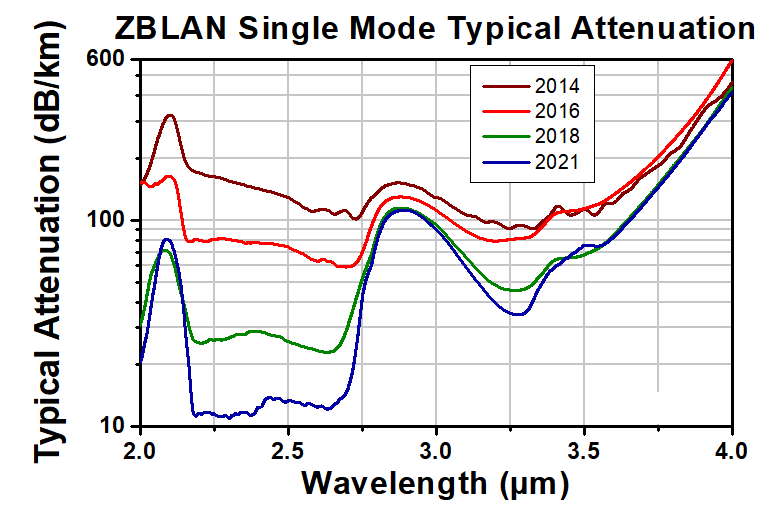

- World-Class Attenuation, Strength, and Geometry Control
Applications
- Spectroscopy
- Fiber Lasers
- Supercontinuum Light Sources
- Environmental Monitoring
- Surgical Lasers
- Chemical Sensing
- IR Imaging

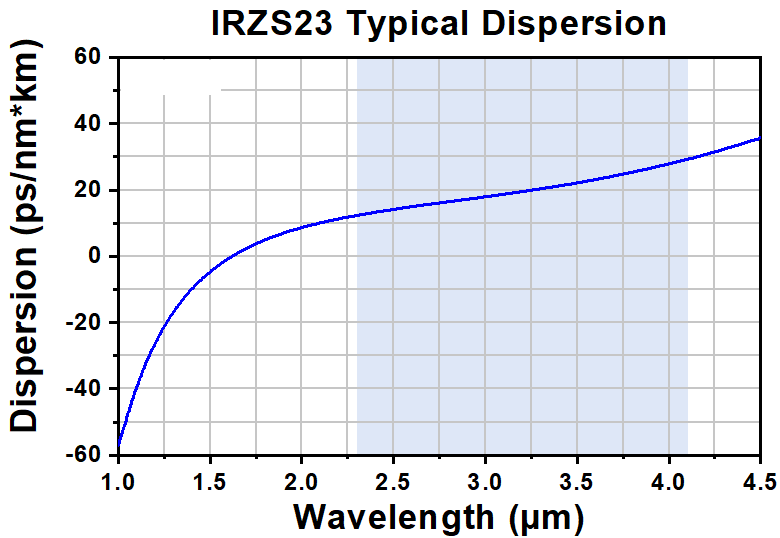

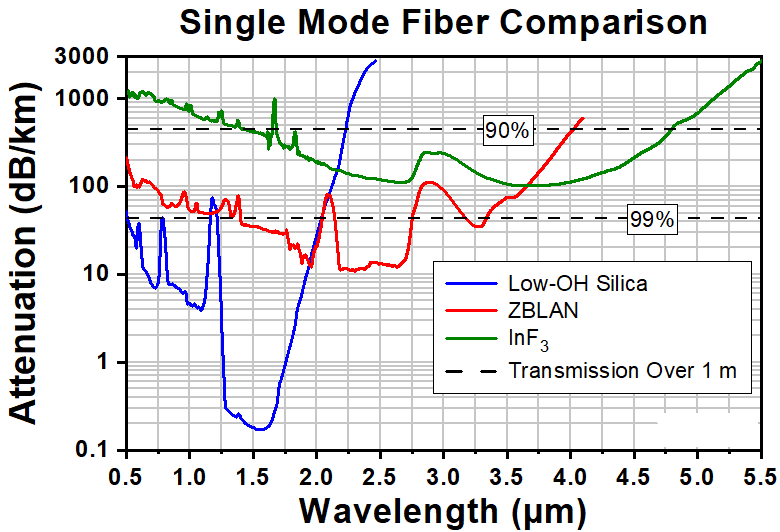

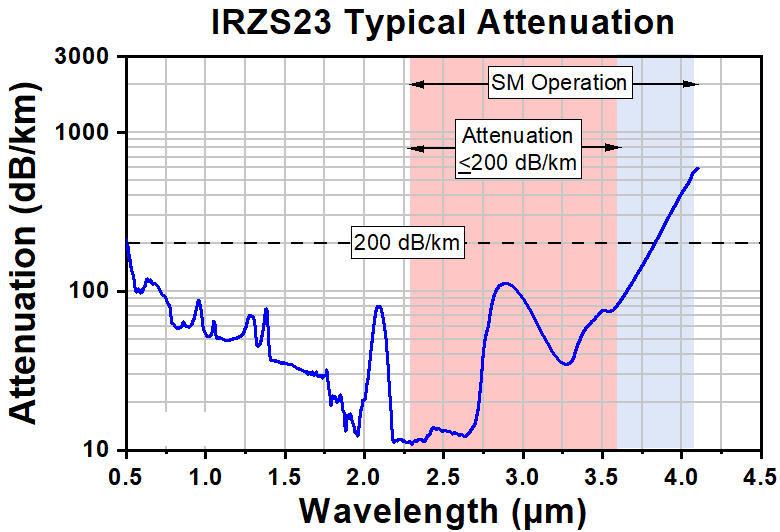

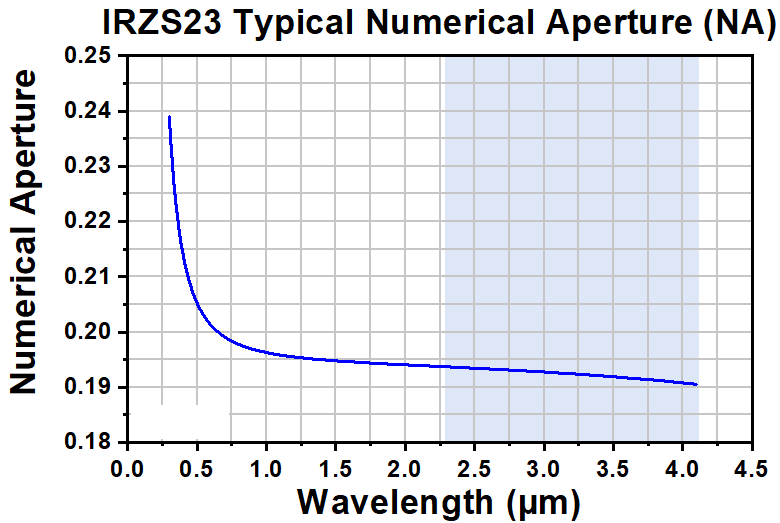

| Item # | T-IRZS23 |
|---|---|
| Fiber Type | Fluorozirconate (ZBLAN) |
| Transmission Range | 285 nm - 4.1 µm |
| SM Operating Wavelength | 2.3 - 4.1 µm |
| Cutoff Wavelength | ≤2.3 µm |
| Typical Attenuation | 30 dB/km @ 2.5 µm |
| Maximum Attenuation | <200 dB/km (from 2.3 - 3.6 µm) |
| NA | 0.19 ± 0.02 @ 2 µm |

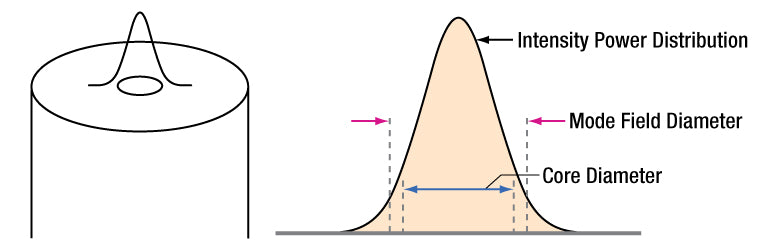

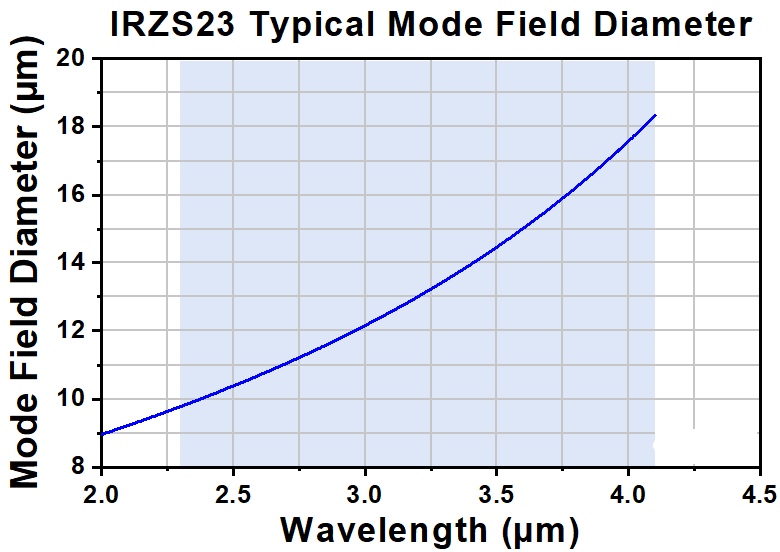

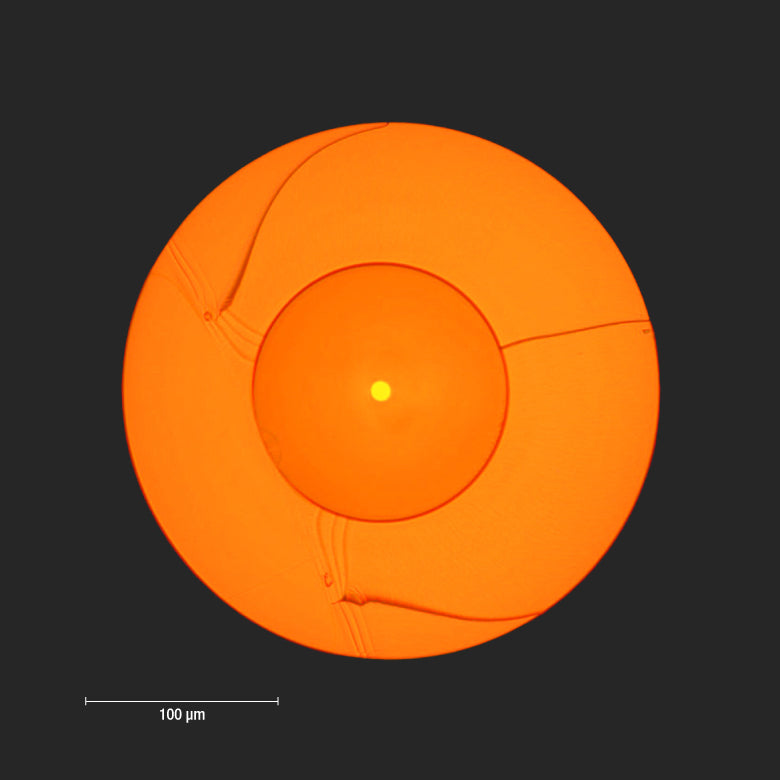

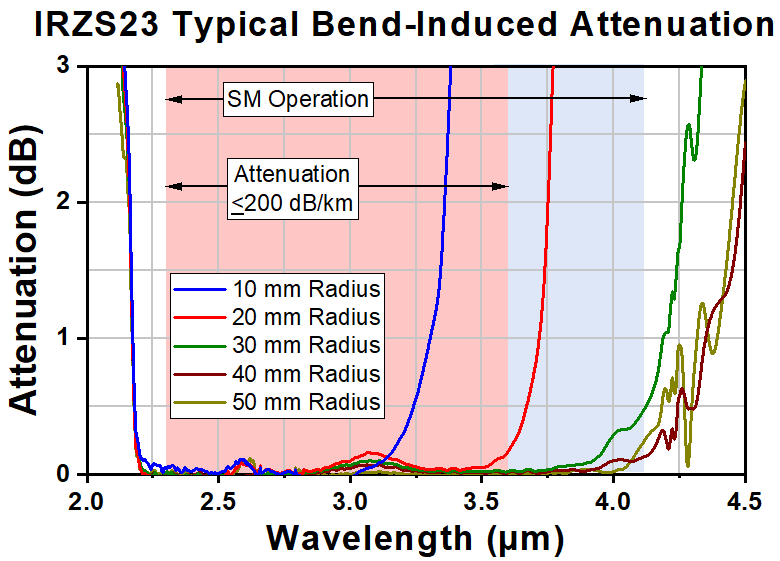

| MFD | 10.5 ± 0.5 µm @ 2.5 µm |
| Core Diameter | 9 ± 0.5 µm |
| Cladding Diameter | 125 +1/-2 µm |
| Coating Diameter | 260 ± 15 µm |
| Core/Cladding Concentricity | ≤2 µm |
| Core Circularity | ≥94% |
| Long-Term Bend Radius | ≥30 mm |
| Short-Term Bend Radius | ≥10 mm |
| Operating Temperature | -55 to 90 °C |

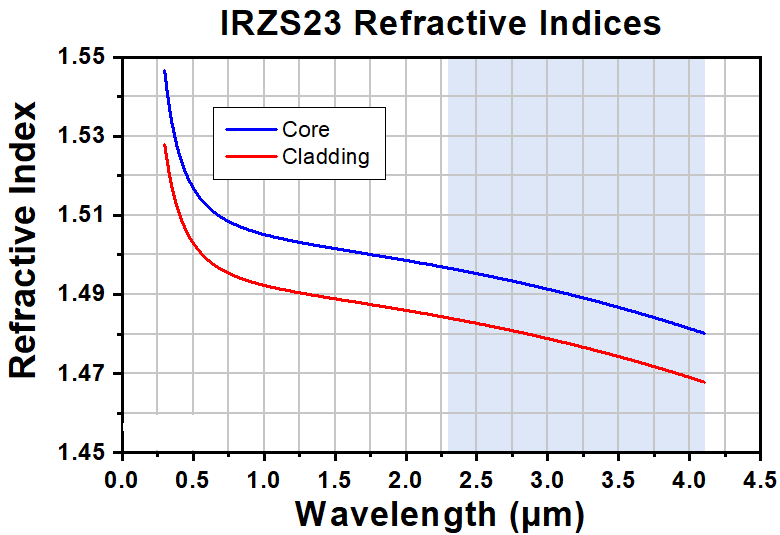

| ZBLAN Sellmeier Coefficients | ||
|---|---|---|
| Coefficient | Core | Cladding |
| u0 | 0.5463 | 0.705674 |
| u1 | 0.7566 | 0.515736 |
| u2 | 1.782 | 2.204519 |
| u3 | 0.000 | 0.087503 |
| u4 | 0.116 | 0.087505 |
| u5 | 21.263 | 23.80739 |
| A | 0.9562 | 1 |
