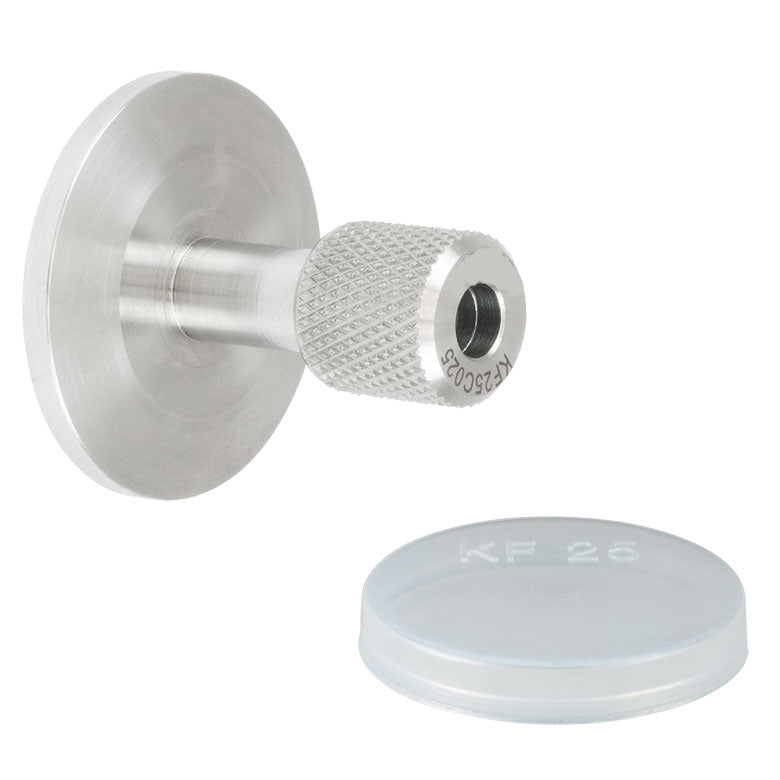

T-KF25C025 - KF25 Flange to Compression Fitting Adapter for Pipes with OD = 1/4", 6.0 mm, or 6.4 mm
T-KF25C025 - KF25 Flange to Compression Fitting Adapter for Pipes with OD = 1/4", 6.0 mm, or 6.4 mm
- Quickly Connect Glass and Metal Pipes to KF-Compatible Vacuum Systems
- Options for a Variety of Pipe Outer Diameters (OD):
- 1/4" to 1" Imperial Sizes
- 6.0 mm to 25.0 mm Metric Sizes
- 304 Stainless Steel Construction for High Durability and Low Outgassing
- Internal Viton®* Fluoroelastomer O
-Ring Included - Compatible Pipe OD Imperial 1/4"
- Compatible Pipe OD Metric 6.0 mm and 6.4 mm
- Included
O-Ring Dimensions OD 0.38" (9.6 mm), ID 0.24" (6.1 mm) - Thickness 0.07" (1.8 mm), Dash # 010
| Equivalent Sizes | KF Flange Measurements | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Absolute Maximum Inner Diameter |
KF Size | DN Size | NW Size | A | B | C | |||||
| 25 mm | KF25 | DN16 | NW16 | 1.18" (30.0 mm) | 0.12" (3.0 mm) | 0.10" - 0.11" (2.5 mm - 2.8 mm) |
|||||
