T-KF25C100 - KF25 Flange to Compression Fitting Adapter for Pipes with OD = 1.00" or 25.0 mm

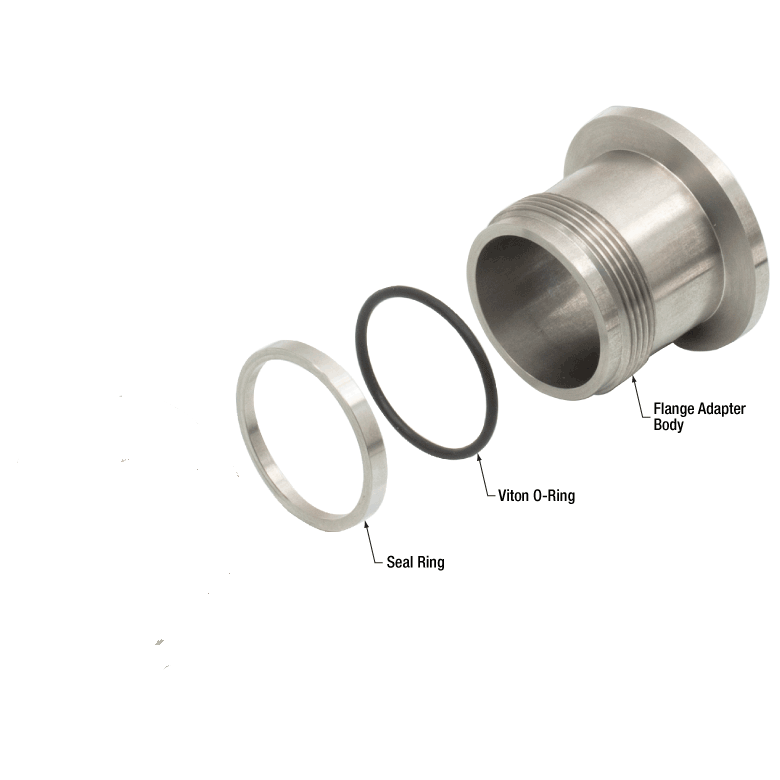

Product Drawing

• Quickly Connect Glass and Metal Pipes to KF-Compatible Vacuum Systems
• Options for a Variety of Pipe Outer Diameters (OD):
  • 1/4" to 1" Imperial Sizes
  • 6.0 mm to 25.0 mm Metric Sizes
• 304 Stainless Steel Construction for High Durability and Low Outgassing
• Internal Viton^®* Fluoroelastomer O-Ring Included
• Compatible Pipe OD Imperial 1.00"
• Compatible Pipe OD Metric 25.0 mm
• Included O-Ring Dimensions OD 1.13" (28.6 mm)
• Included O-Ring Dimensions ID 0.99" (25.2 mm)
• Included O-Ring Dimensions Thickness 0.07" (1.8 mm)
• Included O-Ring Dimensions Dash # 022
