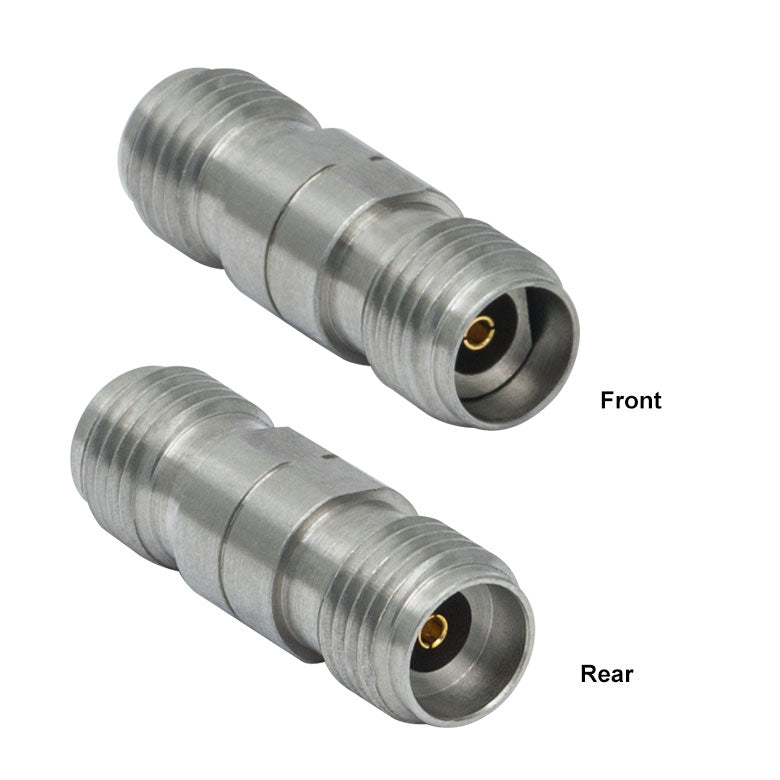

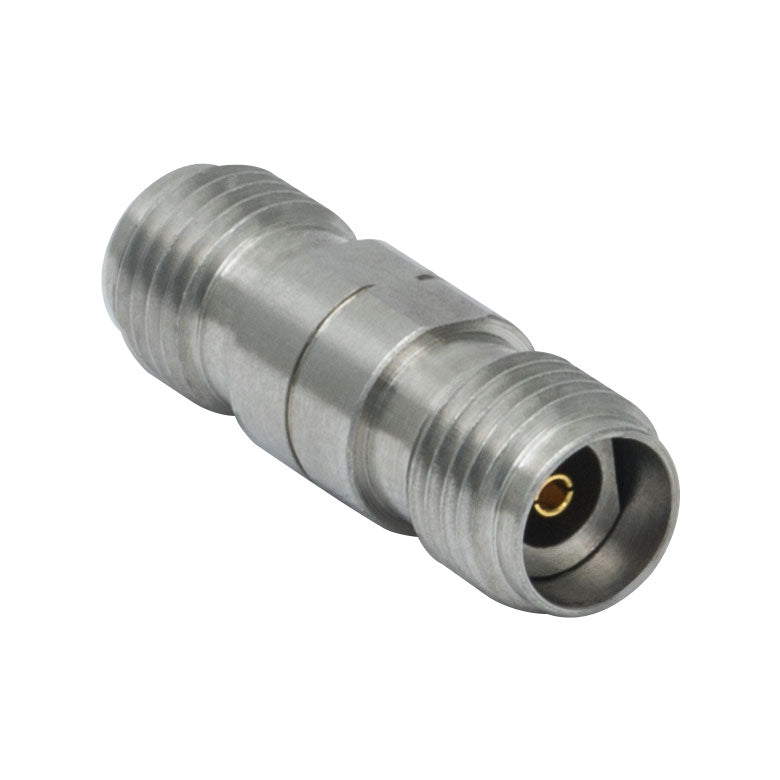

T-KFF - Microwave Cable Adapter, 2.92 mm Female to 2.92 mm Female
T-KFF - Microwave Cable Adapter, 2.92 mm Female to 2.92 mm Female
- Adapters for 2.4 mm or 2.92 mm Connectors
- DC - 40 GHz or DC - 50 GHz
- Adapter Type 2.92 mm
- Adapter Style (Click for Image) 2.92 mm F. to 2.92 mm F.
- VSWR 1.2
- Frequency Range DC - 40 GHz
- Length 19.00 mm
These microwave cable adapters are designed to change the gender or connector type of microwave cables and connectors. They include in-series adapters (F-F, F-M, M-F) for 2.92 mm and 2.4 mm, as well as between-series adapters for all gender combinations of 2.92 mm and 2.4 mm cables.
| Common Specifications | |
|---|---|
| Impedance | 50 Ω |
| Durability | 500 Connection Cycles |
| Material | Stainless Steel (303) |
| Conductor | Gold-Plated Brass (M) or Gold-Plated BeCu (F) |
| Coupling Torque | 8 in-lbs (0.9 N-m) |
| Coupling Nut Hex Size | 5/16" |
