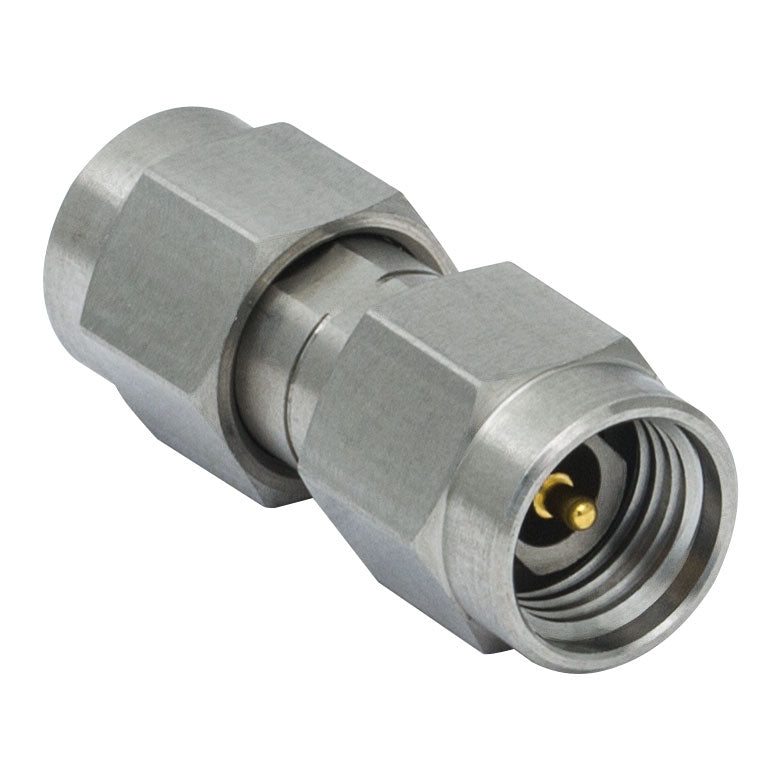

T-KMM - Microwave Cable Adapter, 2.92 mm Male to 2.92 mm Male
- Adapters for 2.4 mm or 2.92 mm Connectors
- DC - 40 GHz or DC - 50 GHz
- Adapter Type: 2.92MM

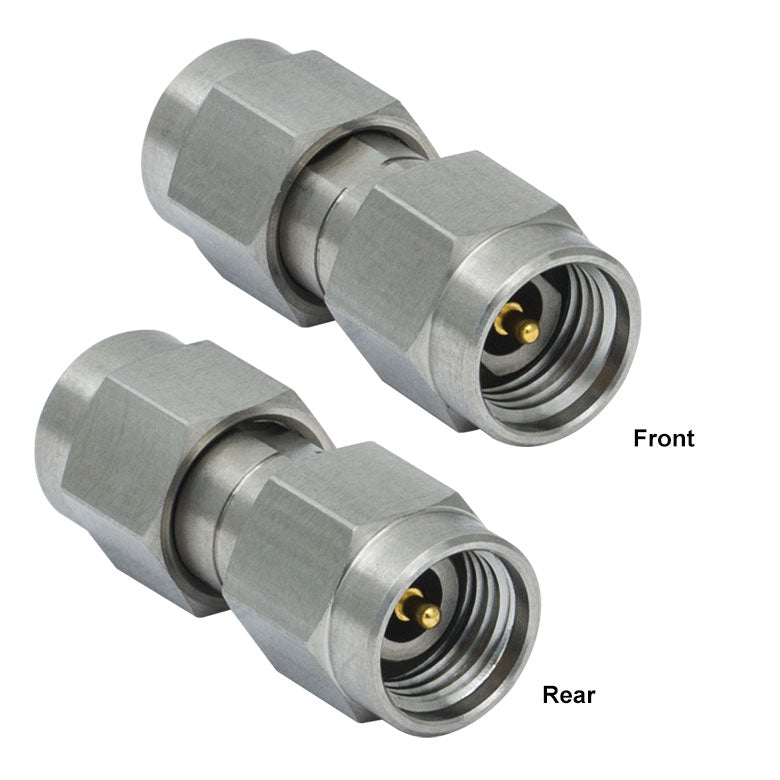

- Photo (Click to Enlarge) 2.92 mm M. to 2.92 mm M.
- VSWR 1.2
- Frequency Range DC - 40 GHz
- Length: 21.20MM
These microwave cable adapters are designed to change the gender or connector type of microwave cables and connectors. They include in-series adapters (F-F, F-M, M-F) for 2.92 mm and 2.4 mm, as well as between-series adapters for all gender combinations of 2.92 mm and 2.4 mm cables.
| Common Specifications | |
|---|---|
| Impedance | 50 Ω |
| Durability | 500 Connection Cycles |
| Material | Stainless Steel (303) |
| Conductor | Gold-Plated Brass (M) or Gold-Plated BeCu (F) |
| Coupling Torque | 8 in-lbs (0.9 N-m) |
| Coupling Nut Hex Size | 5/16" |
