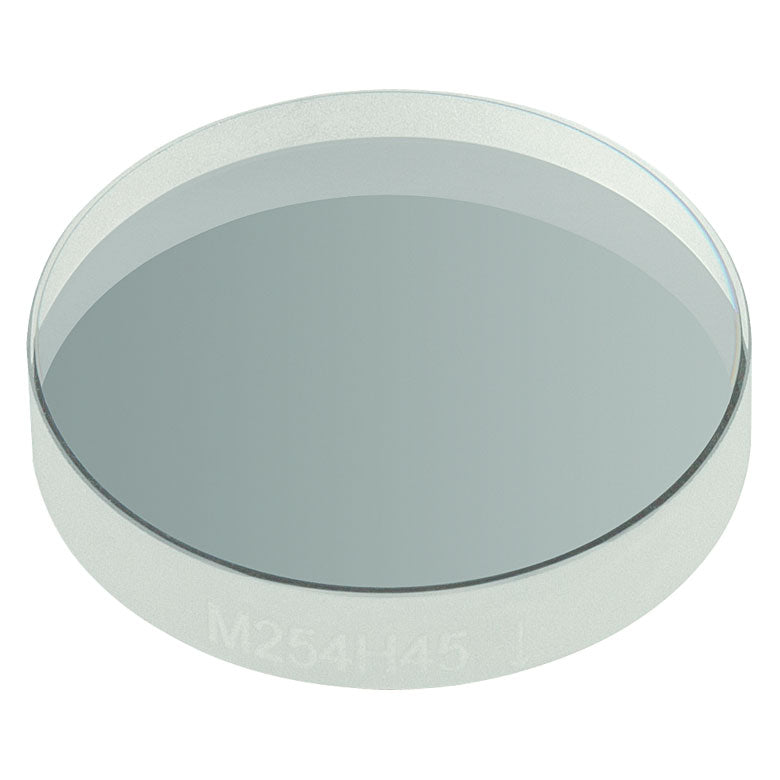

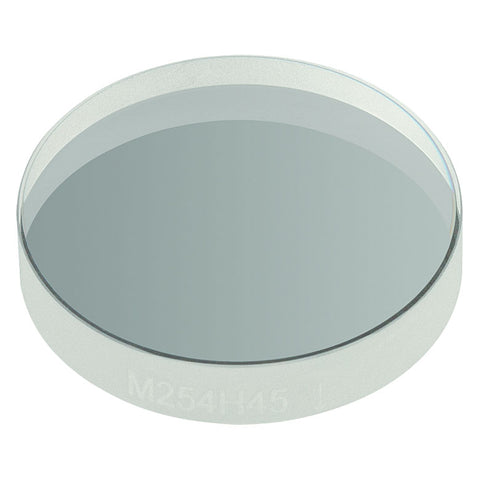

T-M254H45 - Ø1" UVFS Hot Mirror, AOI: 45°, 5 mm Thick
T-M254H45 - Ø1" UVFS Hot Mirror, AOI: 45°, 5 mm Thick
| Specifications | |
|---|---|
| Diameter | Ø1" (Ø25.4 mm) |
| Thickness | 5 mm |
| Surface Flatness | λ/10 at 632.8 nm |
| Surface Quality | 20-10 Scratch-Dig |
| Wedge | 30 ± 10 arcmin |

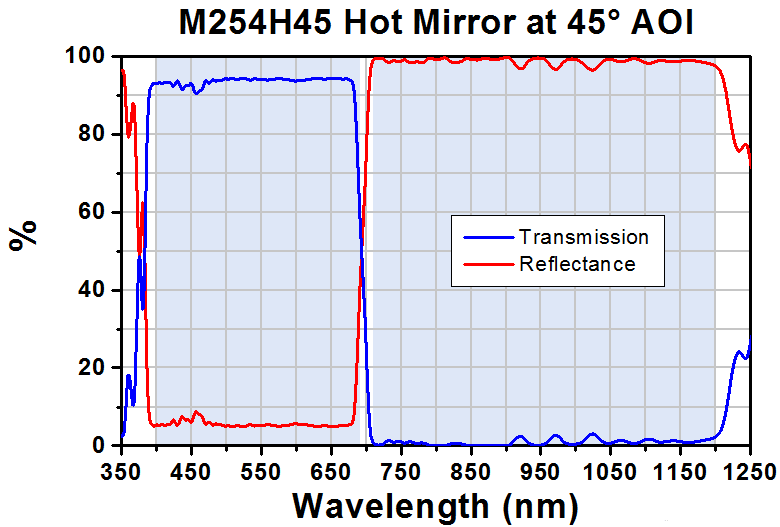

| Transmission | Tavg > 92% from 400 to 690 nm |
| Reflection | Ravg > 97% from 710 to 1200 nm |
| Damage Thresholds | |
|---|---|

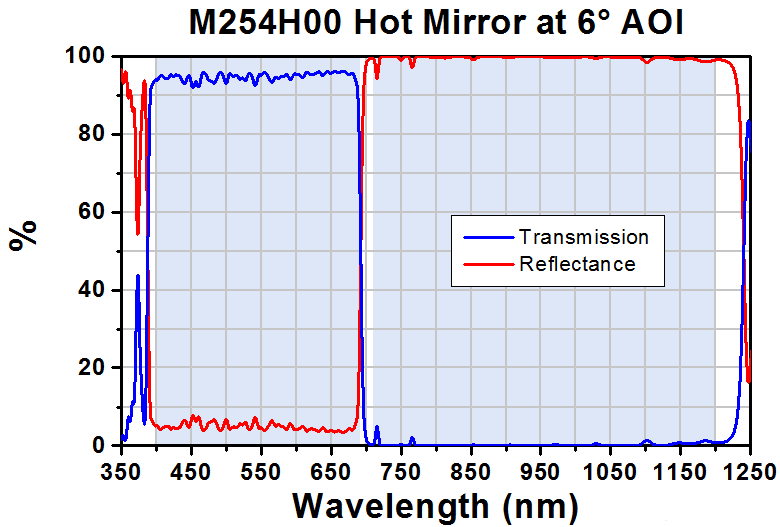

| T-M254H00 | 5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.337 mm) |
| T-M254H45 | 5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.346 mm) |
