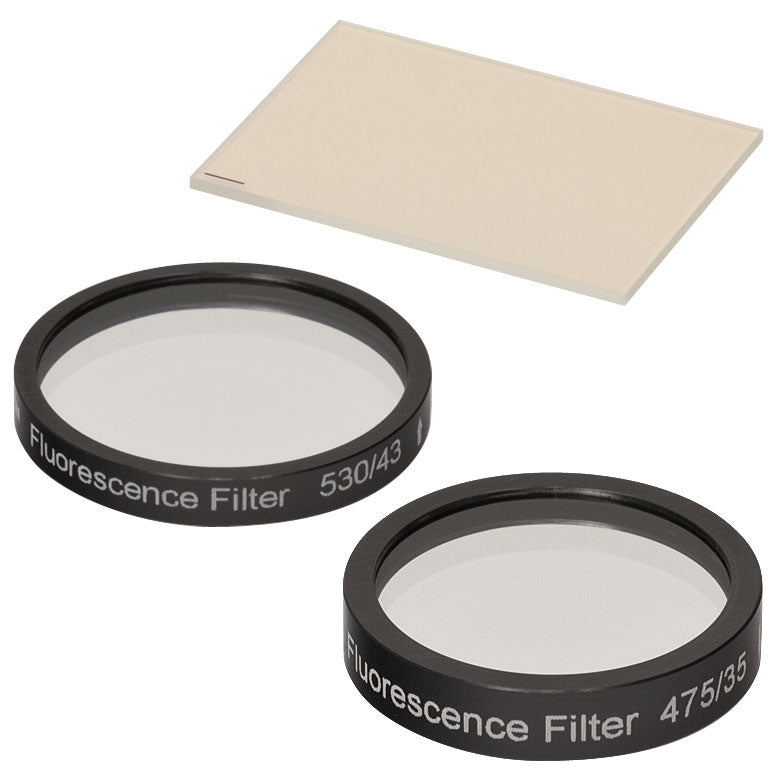

T-MDF-FITC - FITC Excitation, Emission, and Dichroic Filters (Set of 3)
T-MDF-FITC - FITC Excitation, Emission, and Dichroic Filters (Set of 3)
- Excitation, Emission, and Dichroic Filters for Fluorescence Imaging
- >90% Transmission over Desired Wavelength Band
- Sharp Cutoff (T < 0.001%) Outside the Transmission Band
- Matched Filter Sets Designed to Target Many Common Fluorophores
(See Fluorophores Tab for Alternate Fluorophore Compatibility)- BFP
- CFP
- WGFP
- GFP- FITC
- Alexa Fluor® 488
- YFP
- tdTomato- TRITC
- Texas Red
- mCherry
- Cyanine (CY3.5) - Excitation and Emission Filters are Mounted in Black-Anodized Housings
- Dichroic Filters are Unmounted
- Filter Sets are Available at a Savings Over Individual Filter Prices

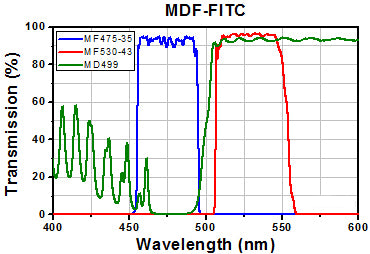

Design Fluorophore Fluorescein Isothiocyanate (FITC)
Excitation Band 475 ± 17.5 nm
Emission Band 530 ± 21.5 nm
Dichroic (Reflection / Transmission Band) 470 - 490 nm / 508 - 675 nm

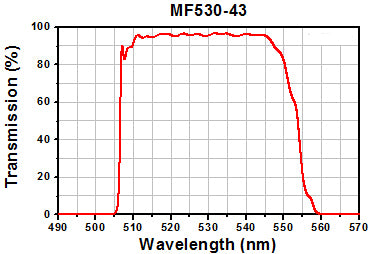

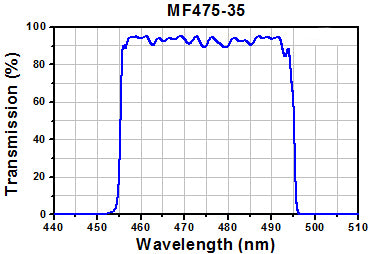

Kit comes with T-MF475-35, Filter Type Excitation, 475 nm Center Wavelength, 35 nm FWHM; T-MF530-43 FITC Fluorophore, Emission Filter Type, 530 nm Center

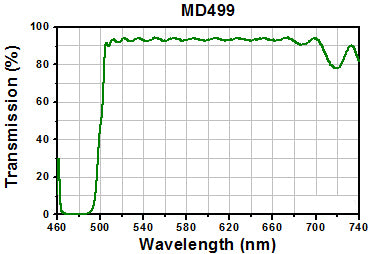

Wavelength, 43 nm FWHM; T-MD499 FICT Fluorophore, Dichroic Filter
Type, Ravg > 90% 470 - 490 nm Reflection Band Tabs > 90% 508 - 675 nm Transmission Band, Rabs < 2% from 400 to 800 nm AR Coating
