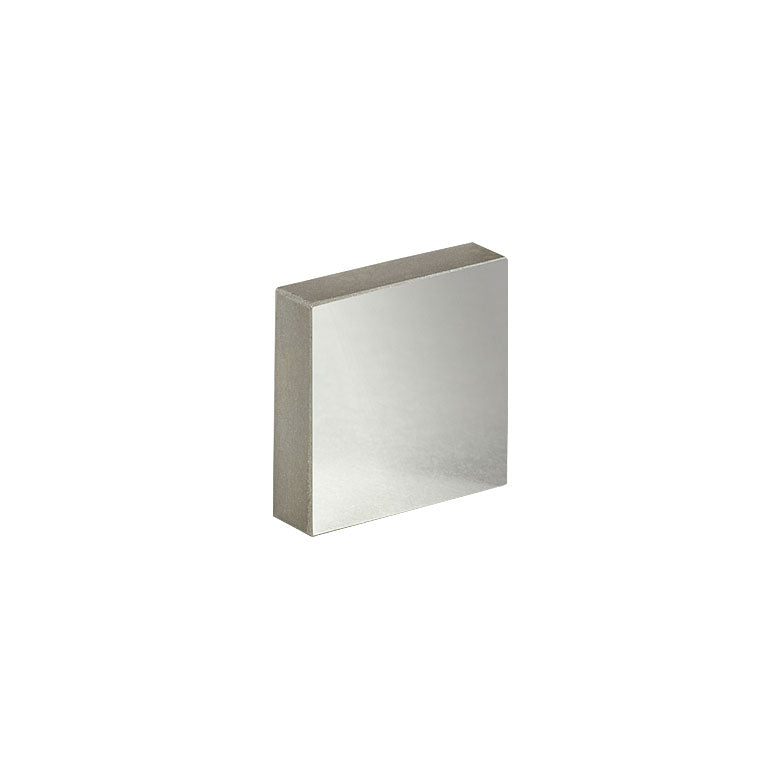

T-ME05S-P01 - 1/2" Square Protected Silver Mirror, 3.2 mm Thick

Fosco Connect Part No.: T-ME05S-P01

  • $ 48.00 or



T-ME05S-P01 - 1/2" Square Protected Silver Mirror, 3.2 mm Thick

Product Drawing

Coating Protected Silver
(Item #'s Ending in -P01)
Reflectance Ravg > 96.5% from 450 to 2 µm
Ravg > 96% from 2 to 20 µm
Diameter Tolerance (Round Mirrors)
+0.0 / -0.20 mm
Length and Width Tolerance (Square Mirrors)
+0.0 / -0.20 mm
Thickness 3.2 ± 0.20 mm
Clear Aperture >90% of Diameter (Round Mirrors)
>90% of Length and Width (Square Mirrors)
Front Surface Flatness (Peak to Valley) 5λ @ 632.8 nm
Surface Quality 60-40 Scratch-Dig
Substrate Float Glass



Our square silver-coated mirrors are available in 1/2", 1", and 2" sizes and have the highest reflectance of all metal-coated mirrors for the visible wavelength range. Silver is an ideal choice for high reflectance from 450 nm to 20 µm. In order to protect the mirrors from oxidation, they have an overcoat of SiO2. Though the overcoat helps to protect silver from tarnishing, high humidity environments should be avoided.

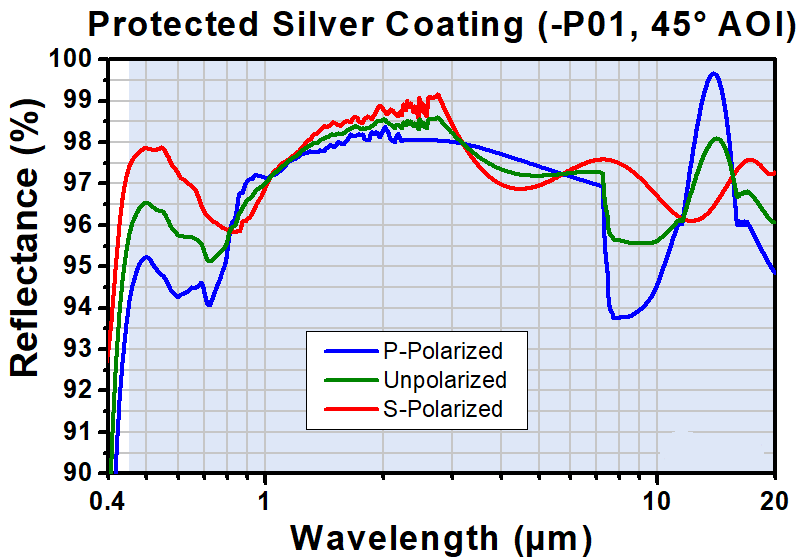

The graph to the right shows these mirrors' reflectance at a 45° angle of incidence (AOI). The shaded region denotes the spectral range over which we recommend using these optics. See the Graphs tab above for 12° AOI data.
