T-ME2-G01 - Ø2" Round Protected Aluminum Mirror, 3.2 mm Thick
T-ME2-G01 - Ø2" Round Protected Aluminum Mirror, 3.2 mm Thick
Our round protected aluminum mirrors are available in Ø1/2", Ø1", and Ø2" sizes, and exhibit average reflectance in excess of 90% in the 450 nm to 2 µm range and 95% in the 2 µm to 20 µm range. A protective SiO2 overcoat is layered over bare aluminum, creating an oxidation-resistant surface which has a smaller chance of tarnishing than protected silver in a high humidity environment.
| Coating | Protected Aluminum (Item #'s Ending in -G01) |
|
|---|---|---|

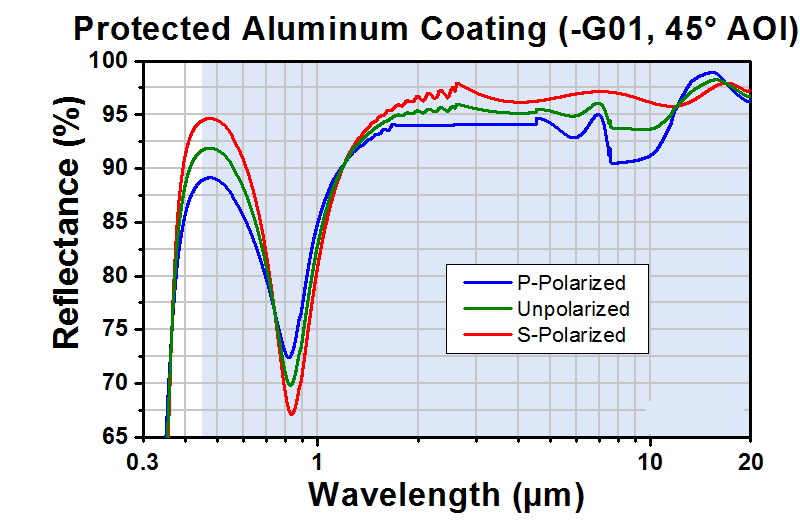

| Reflectance | Ravg > 90% from 450 nm to 2 µm Ravg > 95% from 2 to 20 µm |
|
| Diameter Tolerance (Round Mirrors) |
+0.0 / -0.20 mm | |
| Length and Width Tolerance (Square Mirrors) |
+0.0 / -0.20 mm | |
| Thickness | 3.2 ± 0.20 mm | |
| Clear Aperture | >90% of Diameter (Round Mirrors) >90% of Length and Width (Square Mirrors) |
|
| Front Surface Flatness (Peak to Valley) | 5λ @ 632.8 nm | |
| Surface Quality | 60-40 Scratch-Dig | |
| Substrate | Float Glass | |
