T-MGR6N - MEMS Grating Modulator, 600 - 1100 nm, Ø6 mm Clear Aperture

Part No.: T-MGR6N

Item #	MGR6N

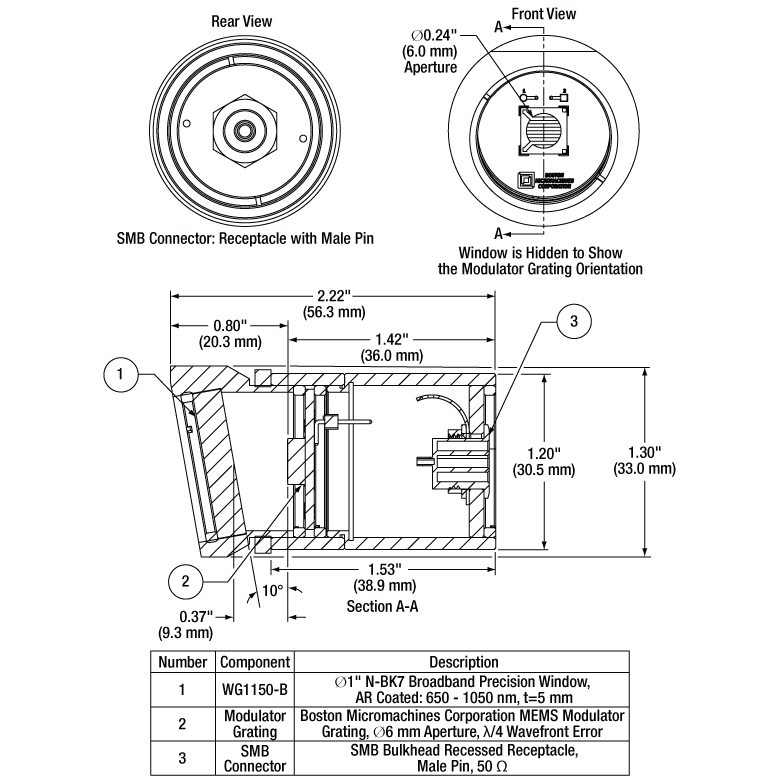

Housing Dimensions (D x L)	Ø1.30" x 2.22"
Reflective Coating (Click for Plot)	Gold
Frequency Range	0 to 200 kHz
Rise/Fall Time: 90% - 10%	<2.5 μs
Rise/Fall Time: 97% - 3%	<4 μs
Peak Extinction Ratio^a	200:1 at 632 nm
Optimal Wavelength Range	600 - 1100 nm
Angle-of-Incidence for Peak Extinction	<10° (Lateral Incident Angle)
Maximum Extinction Frequency Limit, -3 dB^b	100 kHz
Active Aperture	Ø6.0 mm
Total Reflected Wavefront Error (P-V)	λ/4
Maximum Operating Voltage (Device Dependent)^c	<200 V
Maximum Extinction Voltage (Device Dependent; Angle Dependent Above 10°)^d	See Graphs Tab for Typical Performance
Protective Window
Item #	WG11050-B
Angle	10°
Substrate	N-BK7^e
Diameter	1"
Thickness	5 mm

a. Devices measured using 635 nm light and 650 - 1050 nm AR-coated protective window.
b. Maximum Extinction Frequency Limit is defined as the frequency of the device above which the maximum extinction of the beam as noted on the data sheet is no longer attained.
c. The maximum operating voltage is labeled on each unit and also in the data sheet that comes with each unit.
d. The maximum extinction voltage, which is always below the max operating voltage, varies depending on the wavelength of interest, angle, and device. Each unit ships with a data sheet that notes the optimal voltage settings and associated extinction ratios for normal incidence.
e. Click link for detailed specifications on the substrate.
