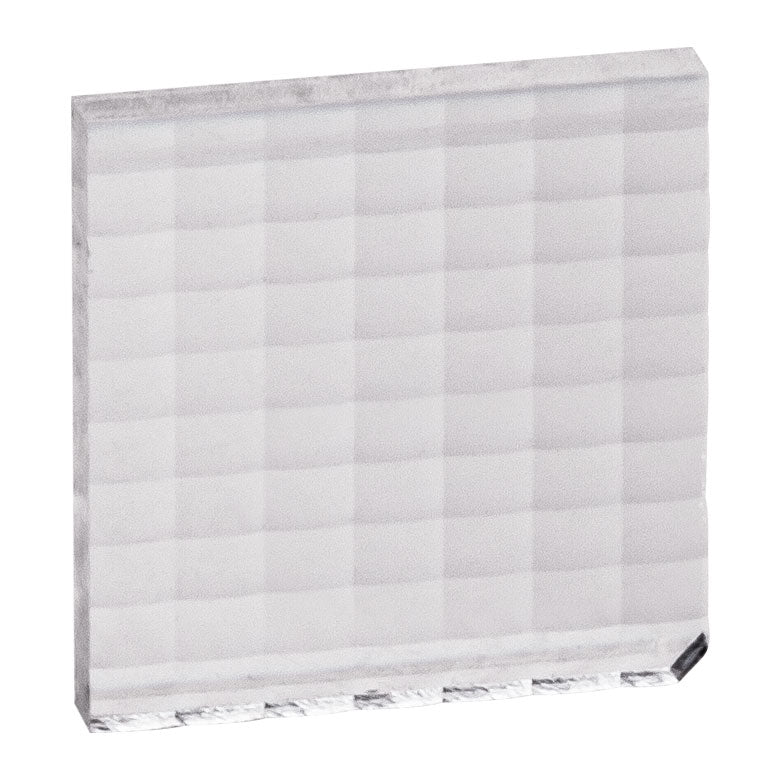

T-MLA11 - 10.0 mm x 9.8 mm PMMA Microlens Array, AR Coated: 420 - 700 nm, EFL = 4.7 mm
T-MLA11 - 10.0 mm x 9.8 mm PMMA Microlens Array, AR Coated: 420 - 700 nm, EFL = 4.7 mm
- Polymethyl Methacrylate (PMMA) Substrate
- 10.0 mm x 9.8 mm High-Quality Microlens Array
- Available Unmounted or in a Ø1" Mount
- Offered Uncoated or Broadband AR Coated
- 420 - 700 nm with an AR Coating
- 650 - 1050 nm with an AR Coating
- Rectangular Grid Arrangement of Microlenses
- Arrays with 1.0 mm x 1.4 mm Lenslet Pitches
- 2.7 mm Single Lens Radius
- Ideal for Producing a Square Spot with a Flat Top Profile
| Substrate Material (Click for Plot) |
PMMA | ||
| Effective Focal Length | 4.7 mm @ 850 nm | ||
| Lenslet Pitch | 1.0 mm x 1.4 mm | ||
| Single Lens Radius | 2.7 mm | ||
| AR Coating (Click for Plot) |
- | 420-7nm | 650-1050 nm |
| Reflectance (Average) | - | <0.8%, 0° AOI | <0.8%, 0° AOI |
| Array Size and Type (Length x Height x Thickness) |
10.0 mm x 9.8 mm x 1.2 mm Rectangular Grid |
||
| Length and Height Tolerances (Unmounted Versions Only) |
±0.1 mm | ||
| Window Aperture (Mounted Versions Only) |
9.0 mm x 9.0 mm | ||
