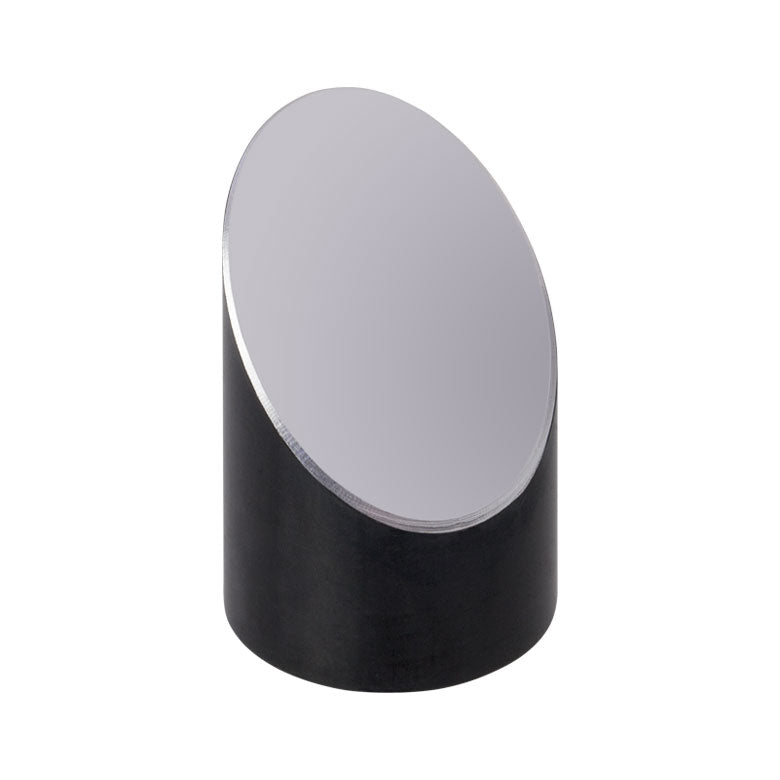

T-MPD00M9-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 15 mm
T-MPD00M9-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 15 mm
- >90% Average Reflectance from 250 - 450 nm
- Collimates a Divergent Source or Focuses a Collimated Beam without Spherical or Chromatic Aberrations
- Effective Focal Lengths from 15 mm (0.59") to 8" (203.2 mm)
- Surface Roughness: <100 Å (RMS)
- Clear Aperture: >90% of Diameter
- Three Kinds of Mounting Adapters for Ø1/2", Ø1", and Ø2" Versions:
- Externally SM-Threaded
- Unthreaded for Use in Mirror Mounts
- With 8-32 (M4) Taps for Post Mounting

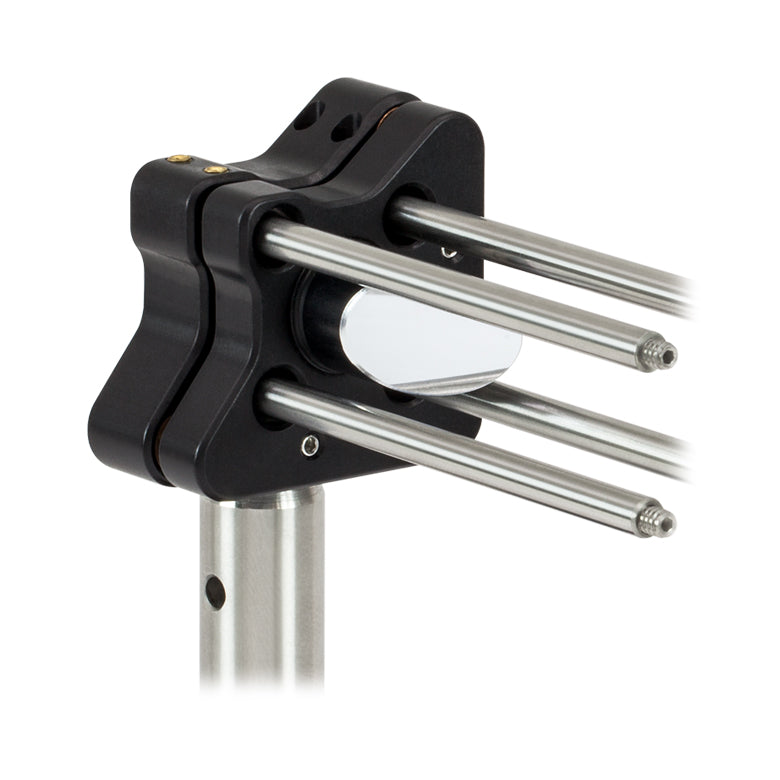

- Right-Angle Kinematic Mount for 30 mm Cage Systems and Ø1" OAP Mirrors

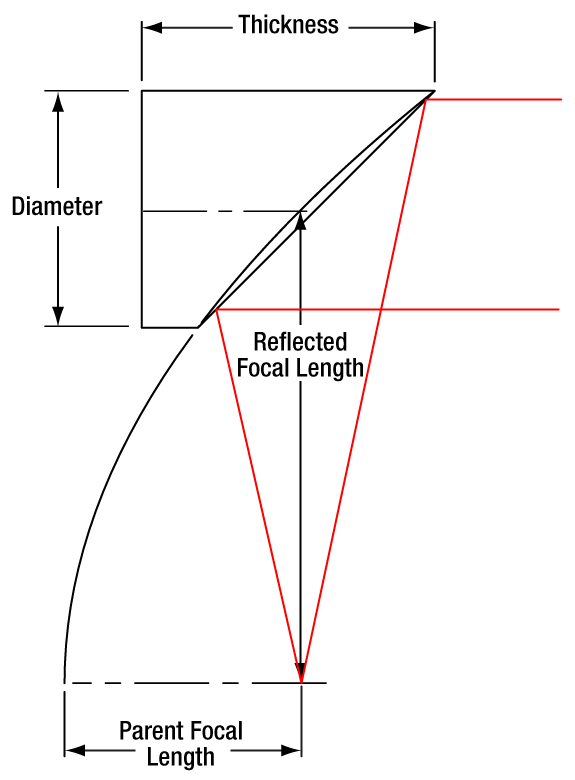

| Item # | Diameter | Thickness | Reflected Focal Length | Parent Focal Length | Reflected Wavefront Error | Bottom Mounting Holes |
|---|---|---|---|---|---|---|
| T-MPD00M9-F01 | 0.5" (12.7 mm) | 20.0 mm (0.79") | 15.0 mm (0.59") | 7.5 mm (0.30") | <λ/4 RMS at 633 nm | 4-40 Taps in Radial Pattern (3 Places) |
| Common Specifications | |
|---|---|
| Reflectance (Average) | >90% from 250 to 450 nm |
| Off-Axis Angle | 90° |
| Clear Aperture | >90% of Diametera |
| Surface Roughness (RMS) | <100 Å |
| Surface Quality | 40-20 Scratch-Dig |
| Parent Focal Length Tolerance | ±1% |
| Reflected Focal Length Tolerance | ±1% |
| Substrate | Aluminum |

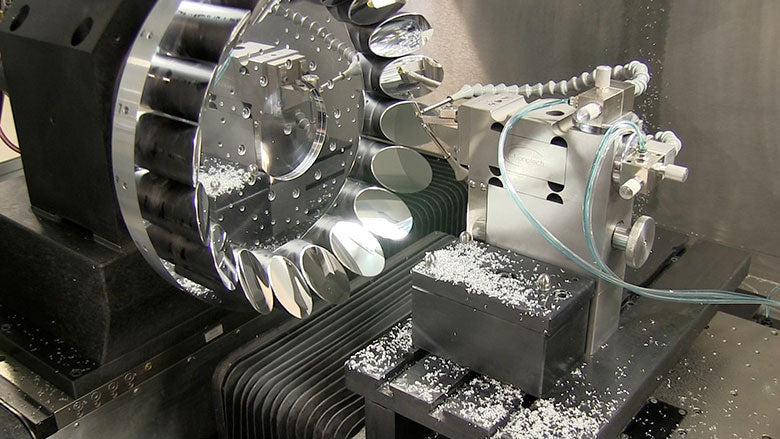

| Manufacturing Process | Diamond Turned |
| Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) | Damage Threshold |
| -F01 (Pulsed) | 0.3 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.414 mm) 0.2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1 mm) |
