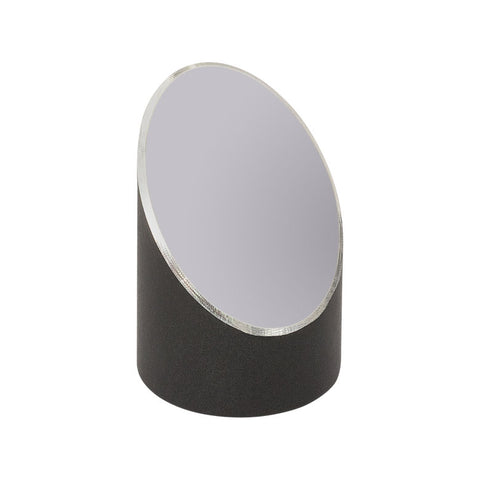

T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"
T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"
- >90% Average Reflectance from 250 - 450 nm
- Collimates a Divergent Source or Focuses a Collimated Beam without Spherical or Chromatic Aberrations
- Effective Focal Lengths from 15 mm (0.59") to 8" (203.2 mm)
- Surface Roughness: <100 Å (RMS)
- Clear Aperture: >90% of Diameter
- Three Kinds of Mounting Adapters for Ø1/2", Ø1", and Ø2" Versions:
- Externally SM-Threaded
- Unthreaded for Use in Mirror Mounts
- With 8-32 (M4) Taps for Post Mounting
- Right-Angle Kinematic Mount for 30 mm Cage Systems and Ø1" OAP Mirrors
| Item # | Diameter | RFL | PFL | Thickness | RWE | Mounting Features |
|---|---|---|---|---|---|---|
| T-MPD00M9-F01 | 0.5" (12.7 mm) |
15.0 mm (0.59") | 7.5 mm (0.3") | 20.0 mm (0.79") | <λ/4 RMS at 633 nm |
Three 4-40 Taps on Bottom |
| T-MPD019-F01 | 1" (25.4 mm) | 0.5" (12.7 mm) | 0.74" (18.8 mm) | |||
| T-MPD01M9-F01 | 33.0 mm (1.3") | 16.5 mm (0.65") | 20.0 mm (0.79") | |||
| T-MPD029-F01 | 2" (50.8 mm) | 1" (25.4 mm) | 0.74" (18.8 mm) | |||
| T-MPD039-F01 | 3" (76.2 mm) | 1.5" (38.1 mm) |
