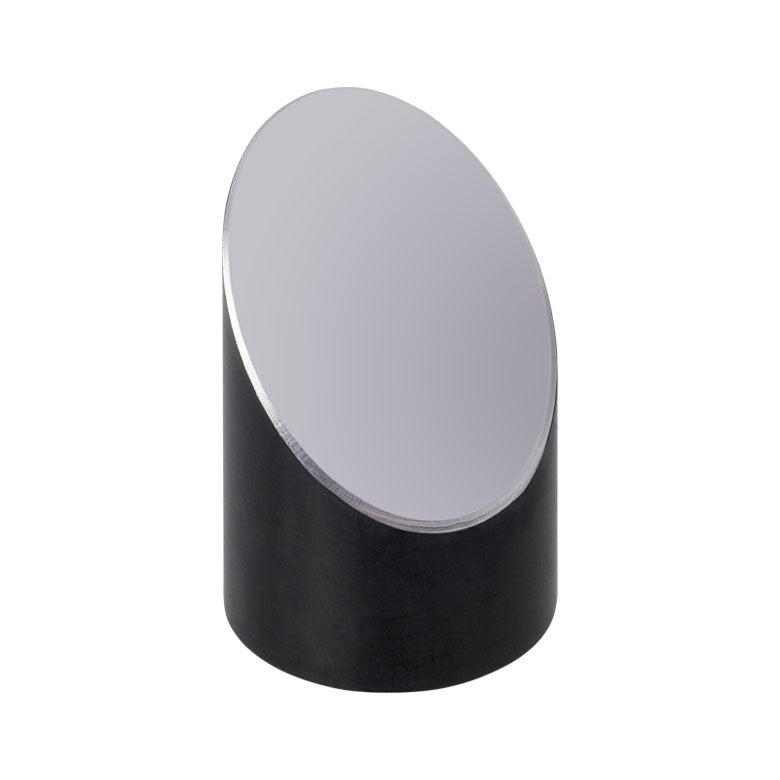

T-MPD01M9-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 33 mm

Fosco Connect Part No.: T-MPD01M9-F01

  • $ 255.00 or



T-MPD01M9-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 33 mm

Item # Diametera RFLa PFLa Thicknessa RWE Mounting Featuresb
T-MPD00M9-F01 0.5"
(12.7 mm)
15.0 mm (0.59") 7.5 mm (0.3") 20.0 mm (0.79") <λ/4 RMS
at 633 nm
Three 4-40 Taps
on Bottom
T-MPD019-F01 1" (25.4 mm) 0.5" (12.7 mm) 0.74" (18.8 mm)
T-MPD01M9-F01 33.0 mm (1.3") 16.5 mm (0.65") 20.0 mm (0.79")
T-MPD029-F01 2" (50.8 mm) 1" (25.4 mm) 0.74" (18.8 mm)
T-MPD039-F01 3" (76.2 mm) 1.5" (38.1 mm)

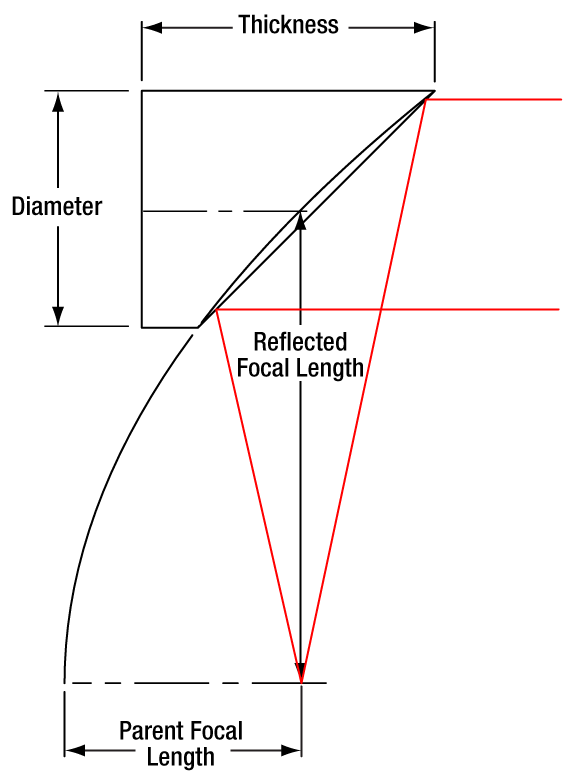

  • a.The diagram in the Overview tab defines these quantities.
  • b.See below for the corresponding mounting adapters.

RFL = Reflective Focal Length
PFL = Parent Focal Length

RWE = Reflected Wavefront Error
