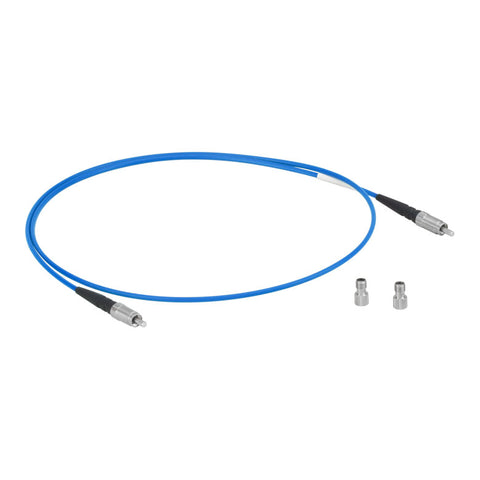

T-MZ11L1 - Ø100 µm, 0.20 NA ZBLAN Multimode Patch Cable, SMA905, 1 m Long

Fosco Connect Part No.: T-MZ11L1

  • $ 525.00 or



T-MZ11L1 - Ø100 µm, 0.20 NA ZBLAN Multimode Patch Cable, SMA905, 1 m Long

Product Drawing

  • Patch Cables Made from Thorlabs' Ø100 µm Core Multimode ZBLAN Fiber Manufactured In-House

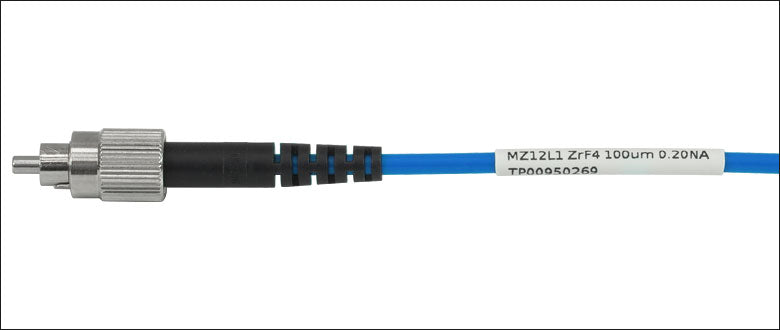

  • SMA905 or FC/PC-Compatible Connectors with Metal Ferrules
  • 1 m or 2 m Long (Custom Lengths Available by Contacting sales@fo4sale.com)
  • Stiff, Ø3.0 mm PVDF Furcation Tubing
  • Two Protective Caps Included
    • SMA905 Connectors: Stainless Steel Caps
    • FC/PC Connectors: Plastic Caps
  • Fiber ZBLAN Multimode
  • Transmission Range 285 nm - 4.5 µm
  • Attenuation ≤0.2 dB/m (for 2.0 - 3.6 µm)
  • Core Diameter 100 ± 2.0 µm
  • Cladding Diameter 192 ± 2.5 µm
  • NA 0.20 ± 0.02 @ 2.0 µm
  • Bend Radius (Short Term/ Long Term) ≥2.9 cm / ≥5 cm
  • Connectors SMA905
  • Jacket Blue PVDF (Ø3 mm) Operating Temperature
  • Connector Compatibility SMA905
  • Jacket T-FT030DF-B
