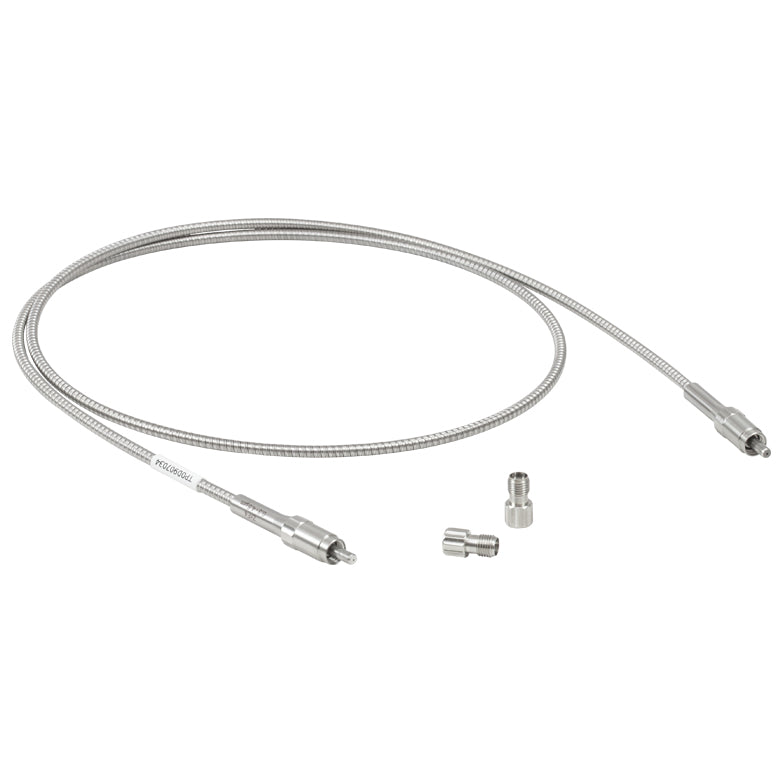

T-MZ41L1 - Ø450 µm, 0.20 NA ZBLAN Multimode Patch Cable, SMA905, 1 m Long
T-MZ41L1 - Ø450 µm, 0.20 NA ZBLAN Multimode Patch Cable, SMA905, 1 m Long
- Patch Cables Made from Thorlabs' Ø450 µm Core Multimode ZBLAN Fiber Manufactured In-House

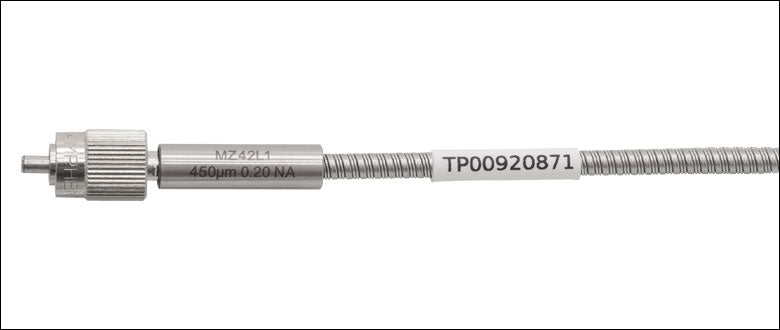

- SMA905 or FC/PC-Compatible Connectors with Metal Ferrules
- 1 m Long (Custom Lengths Available by Contacting Sales@fo4sale.com)
- Ø3.8 mm Stainless Steel Jacket with Minimum Bend Radius of 50 mm
- Two Protective Caps Included
- SMA905 Connectors: Stainless Steel Caps
- FC/PC Connectors: Plastic Caps
- Fiber ZBLAN Multimode
- Transmission Range 285 nm - 4.5 µm
-
Attenuation ≤0.2 dB/m (for 2.0 - 3.6 µm)
- Core Diameter 450 ± 15 µm
- Cladding Diameter 540 ± 15 µm
- NA 0.20 ± 0.02 @ 2.0 µm
- Bend Radius (Short Term/ Long Term) ≥50 mme / ≥125 mm
- Connectors SMA905
- Jacket Stainless Steel (Ø3.8 mm)
- Operating Temperature -55 to 90 °C
