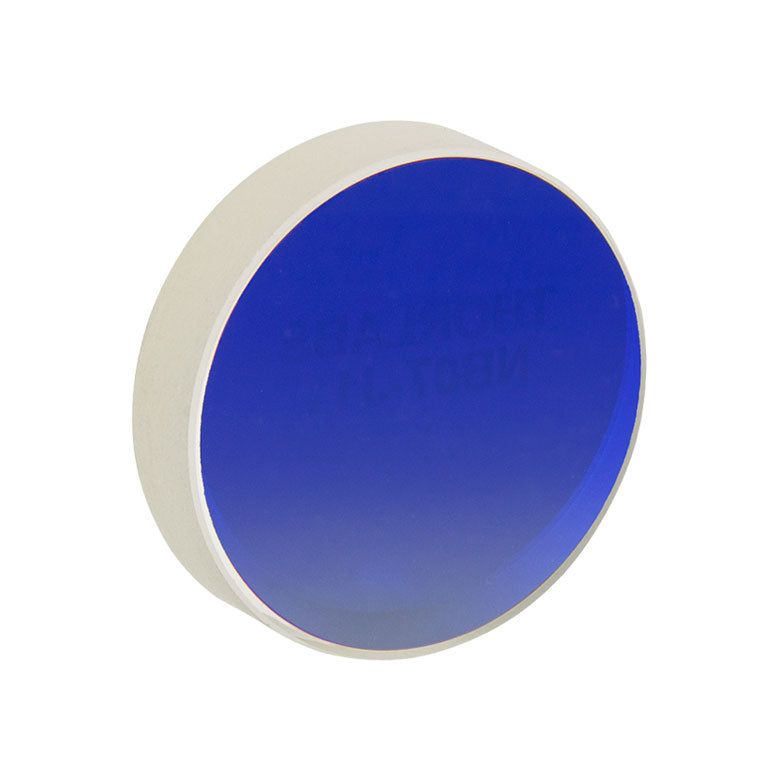

T-NB07-J11 - Ø19 mm Kr-Ion Laser Mirror, 520-647 nm, 45° AOI
- 45° Angle of Incidence
- Ravg > 99.7% from 520 to 647 nm
The Kr-Ion laser line mirror has a specialized coating that provides a high reflectance over the 520 - 647 nm wavelength range. These mirrors are suitable for use with the output beam from large-frame, high-powered CW (continuous wave) Kr-Ion lasers.
| Item # | T-NB07-J11 |
|---|---|
| Wavelength Range | 520 - 647 nm |
| Reflectance | Ravg > 99.7% |
| Angle of Incidence | 45° |
| Substrate Material | Fused Silica |
| Front Surface Flatness | λ/10 |
| Diameter | Ø19 mm |
| Diameter Tolerance | +0.0 / -0.1 mm |
| Clear Aperture | >80% of Diameter |
| Back Surface | Fine Grounda |
| Thickness | 6.0 ± 0.2 mm |
| Parallelism | ≤3 arcmin |
| Surface Quality | 10-5 Scratch-Dig |
