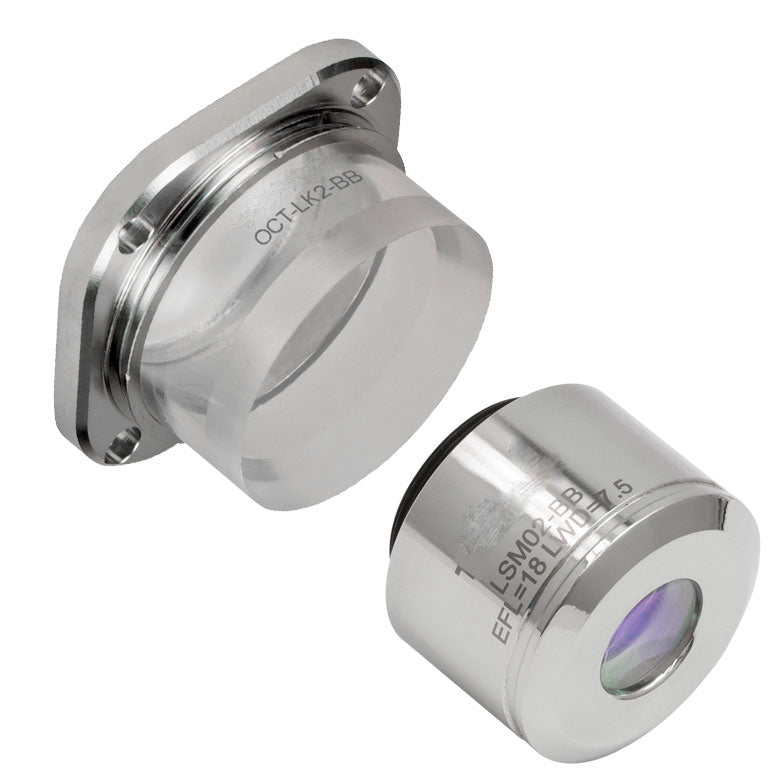

T-OCT-LK2-BB - OCT Scan Lens Kit, 18 mm EFL, 880 nm / 900 nm / 930 nm / 1060 nm
T-OCT-LK2-BB - OCT Scan Lens Kit, 18 mm EFL, 880 nm / 900 nm / 930 nm / 1060 nm
Scan Lens Kits for 880 nm OCT Systems
- Telecentric Scan Lenses Provide a Flat Imaging Plane
- Lenses AR Coated for 800 - 1100 nm
- Scan Lens Kits Include
- Telecentric Scan Lens
- Illumination Tube
- IR Card
- Calibration Target
- Dispersion Compensation Set
- Design Wavelength 880 nm / 900 nm / 930 nm / 1060 nm
- Compatible Scanner T-OCTG9 (Standard) or T-OCTP-900 (User-Customizable)
- Lateral Resolution 4 µm
- Effective Focal Length 18 mm
- Working Distance 3.4 mm (with Tube) 7.5 mm (without Tube)
- Field of View 6 mm x 6 mm
- Lens Threading M25 x 0.75
