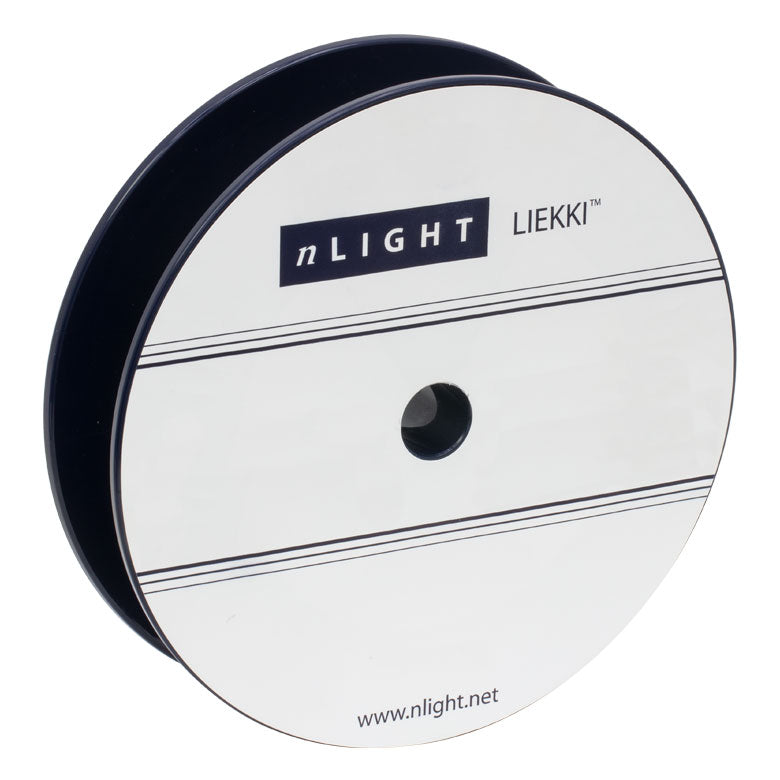

T-P-10-125DC-PM - Passive PM LMA Double-Clad Fiber, 10 µm Core, Matched to YB1200-10/125DC-PM, Unit Pricing Per Meter
T-P-10-125DC-PM - Passive PM LMA Double-Clad Fiber, 10 µm Core, Matched to YB1200-10/125DC-PM, Unit Pricing Per Meter
- Optimized for Coupling to Active Doped Fibers
- Single Mode and Large Mode Area (LMA) Options
- Industry-Standard Geometries for Easy Handling
- Polarization Maintaining
- Compatible Active Fiber YB1200-10-125DC-PM
- Cladding Geometry Round, Panda
- Core Diameter 10.0 ± 1 µm
- MFD -
- Cladding Diameter 125.0 ± 1 µm
- Coating (Second Cladding) Diameter 245 ± 15 µm
- Core NA 0.08 ± 0.005
- Cladding NA ≥0.48
- Proof Test ≥100 kpsi
