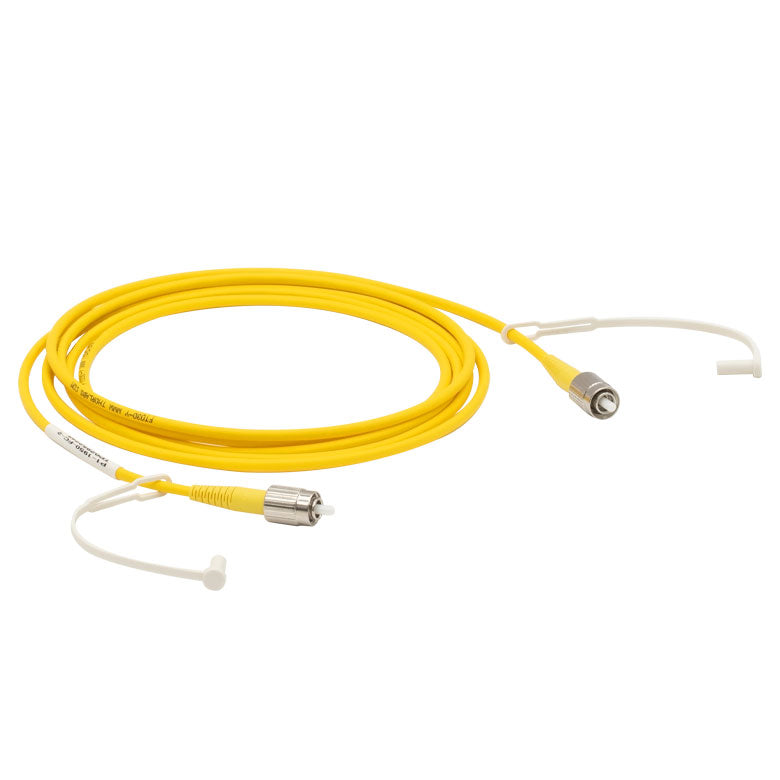

T-P1-1950-FC-2 - Single Mode Fiber Patch Cable, 2 m, 1850 - 2200 nm, FC/PC, Ø3 mm Jacket
T-P1-1950-FC-2 - Single Mode Fiber Patch Cable, 2 m, 1850 - 2200 nm, FC/PC, Ø3 mm Jacket
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
- FC/PC 2.0 mm Narrow Key Connectors on Both Ends
- Low Back Reflections (High Return Loss): 50 dB (Typ.)
- Available from Stock
- Two Dust Caps Included
- Fiber Type SM1950
- Operating Wavelength 1850 - 2200 nm
- Cutoff Wavelength 1720 ± 80 nm
- Mode Field Diameter 8.0 µm @ 1950 nm
- Cladding Diameter 125 ± 1 µm
- Coating Diameter 245 ± 10 µm
- Typical Attenuation 5 dB/km (0.005 dB/m) @ 1.9 µm
- NA 0.20
- Connectors FC/PC, 2.0 mm Narrow Key
- Jacket Ø3 mm Yellow PVC Furcation Tubing
