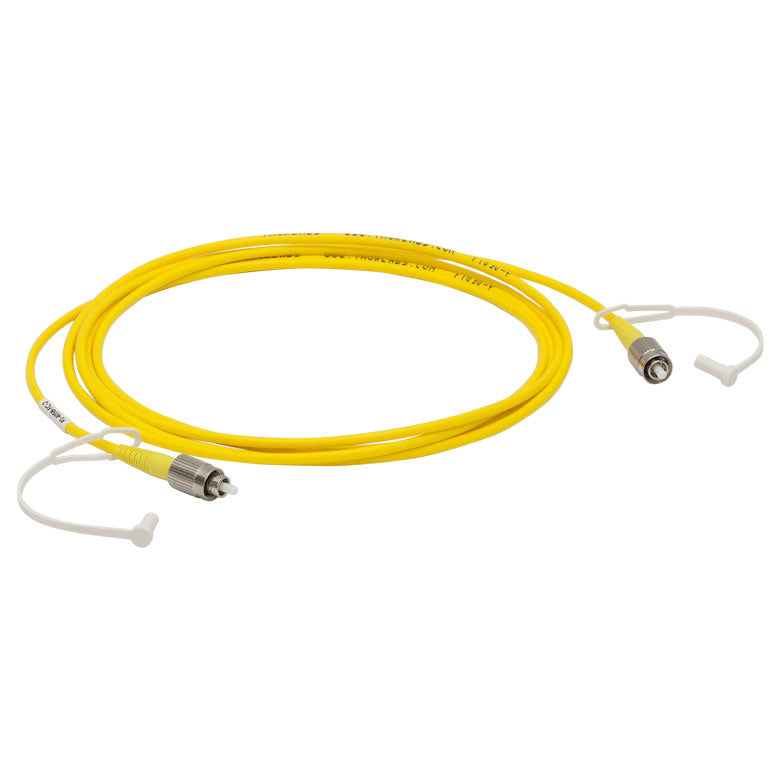

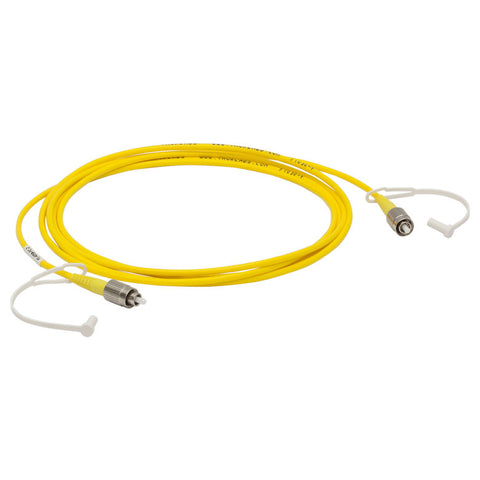

T-P1-405B-FC-5 - Single Mode Patch Cable, 405 - 532 nm, FC/PC, Ø3 mm Jacket, 5 m Long

Product Drawing

• SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
• FC/PC 2.0 mm Narrow Key Connectors on Both Ends
• Low Back Reflections (High Return Loss): 50 dB (Typ.)
• Available from Stock
• Two Dust Caps Included
• Operating Wavelength 405 - 532 nm

• Cutoff Wavelength 305 - 400 nm
• Mode Field Diameter 2.5 - 3.4 µm @ 480 nm

• Cladding Diameter 125 ± 1.0 µm

• Coating Diameter 245 ± 15 µm
• Max attenuation data is for unterminated fiber ≤50 dB/km @ 430 nm, ≤30 dB/km @ 532 nm

• NA 0.12 - 0.14

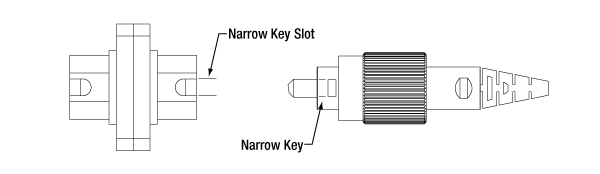

• Connectors FC/PC, 2.0 mm Narrow Key
• Jacket Ø3 mm Yellow PVC Furcation Tubing
• Fiber SM400
• Operating Wavelength 405 - 532 nm
• Cutoff Wavelength 305 - 400 nm
• Mode Field Diameter (MFD) 2.5 - 3.4 µm @ 480 nm
• Cladding Diameter 125 ± 1.0 µm
• Coating Diameter  245 ± 15 µm
• Attenuation (Max) ≤50 dB/km @ 430 nm, ≤30 dB/km @ 532 nm
• NA 0.12 - 0.14
• Insertion Loss (Typical) 2.5 dB Loss @ 405 nm (Connector to Connector)
• Protective Jacketing Ø3 mm Yellow PVC Furcation Tubing
• Return Loss 50 dB Typical (40 dB Min)
• Connectors FC/PC Narrow Key (2.0 mm) on Both Ends
