T-P1-630Y-FC-2 - Single Mode Patch Cable, 633 - 780 nm, FC/PC, Ø900 µm Jacket, 2 m Long
T-P1-630Y-FC-2 - Single Mode Patch Cable, 633 - 780 nm, FC/PC, Ø900 µm Jacket, 2 m Long
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm

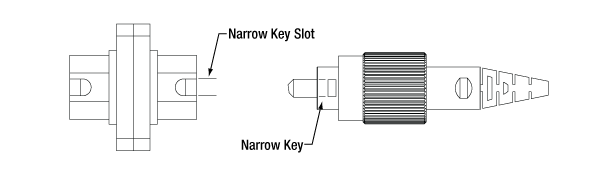

- FC/PC 2.0 mm Narrow Key Connectors on Both Ends
- Low Back Reflections (High Return Loss): 50 dB (Typ.)
- Available from Stock
- Two Dust Caps Included
- Fiber Type SM600
- Operating Wavelength 633 - 780 nm
- Cutoff Wavelength 500 - 600 nm
- Mode Field Diameter 3.6 - 5.3 µm @ 633 nm
- Cladding Diameter 125 ± 1.0 µm
- Coating Diameter 245 ± 15 µm
- Max Attenuation ≤15 dB/km @ 633 nm
- NA 0.10 - 0.14
- Connectors FC/PC, 2.0 mm Narrow Key
- Jacket Ø900 µm Yellow Hytrel®c Tubing
- Attenuation (Max) ≤15 dB/km
- Insertion Loss (Typical) 2.0 dB Loss @ 633 nm (Connector to Connector)
- Return Loss 50 dB Typical (40 dB Min)
- Connectors FC/PC Narrow Key (2.0 mm) on Both Ends
