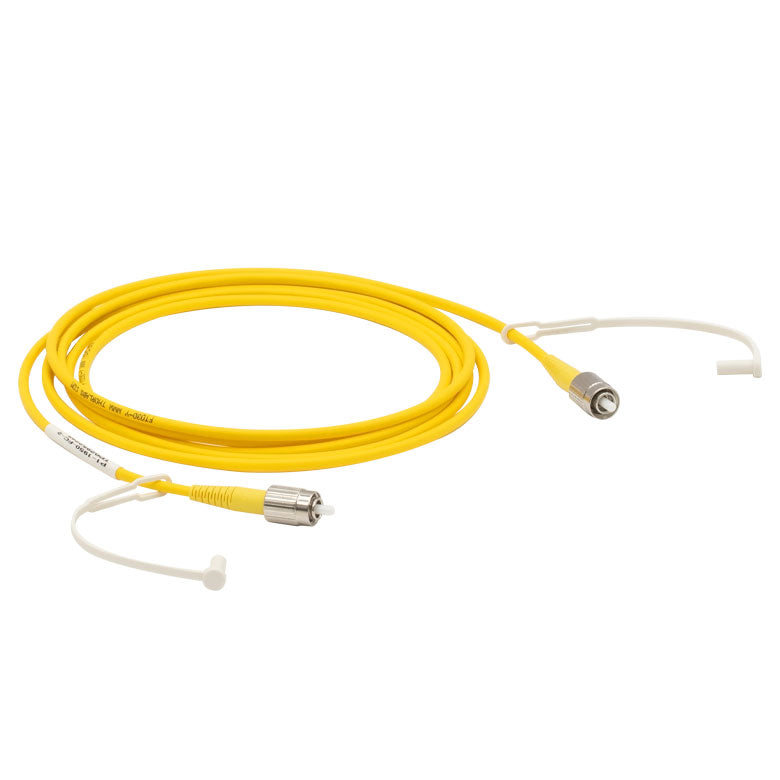

T-P1-780A-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/PC, Ø3 mm Jacket, 1 m Long
T-P1-780A-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/PC, Ø3 mm Jacket, 1 m Long
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
- FC/PC 2.0 mm Narrow Key Connectors on Both Ends
- Low Back Reflections (High Return Loss): 50 dB (Typ.)
- Available from Stock
- Two Dust Caps Included
- Fiber Type 780HP
- Operating Wavelength 780 - 970 nm
- Cutoff Wavelength 730 ± 30 nm
- Mode Field Diameter 5.0 ± 0.5 µm @ 850 nm
- Cladding Diameter 125 ± 1 µm
- Coating Diameter 245 ± 15 µm
- Max Attenuation ≤4.0 dB/km @ 780 nm, ≤3.5 dB/km @ 850 nm
- NA 0.13
- Connectors FC/PC, 2.0 mm Narrow Key
- Jacket Ø3 mm Yellow PVC Furcation Tubing
- Return Loss 50 dB Typical (40 dB Min)
