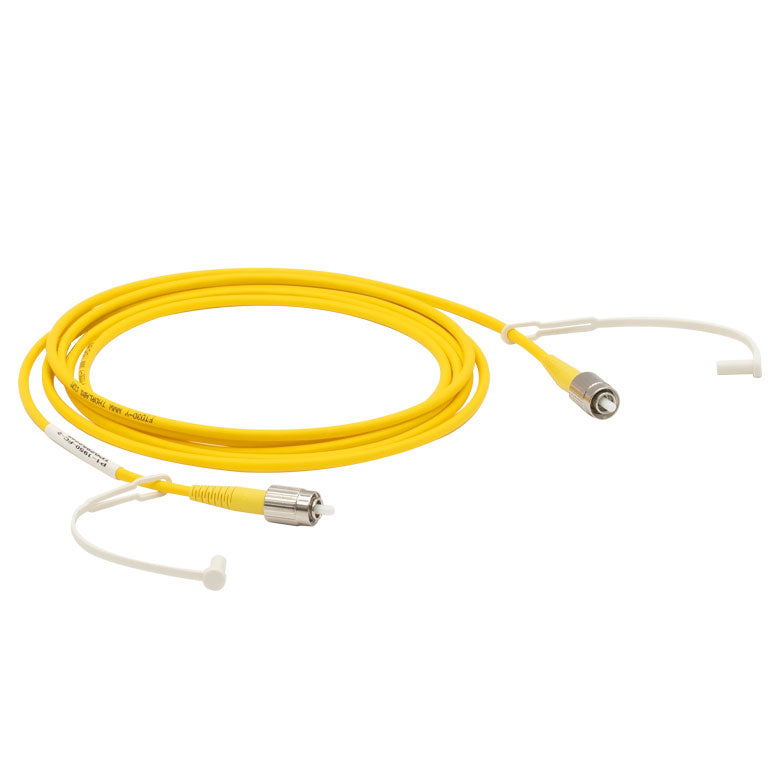

T-P1-830A-FC-5 - Single Mode Patch Cable, 830 - 980 nm, FC/PC, Ø3 mm Jacket, 5 m Long
T-P1-830A-FC-5 - Single Mode Patch Cable, 830 - 980 nm, FC/PC, Ø3 mm Jacket, 5 m Long
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
- FC/PC 2.0 mm Narrow Key Connectors on Both Ends
- Low Back Reflections (High Return Loss): 50 dB (Typ.)
- Available from Stock
- Two Dust Caps Included
- Fiber Type SM800-5.6-125
- Operating Wavelength 830 - 980 nm
- Cutoff Wavelength 660 - 800 nm
- Mode Field Diameter 4.7 - 6.9 µm @ 830 nm
- Cladding Diameter 125 ± 1.0 µm
- Coating Diameter 245 ± 15 µm
- Max Attenuation <5 dB/km @ 830 nm
- NA 0.10 - 0.14
- Connectors FC/PC, 2.0 mm Narrow Key
- Jacket Ø3 mm Yellow PVC Furcation Tubing
