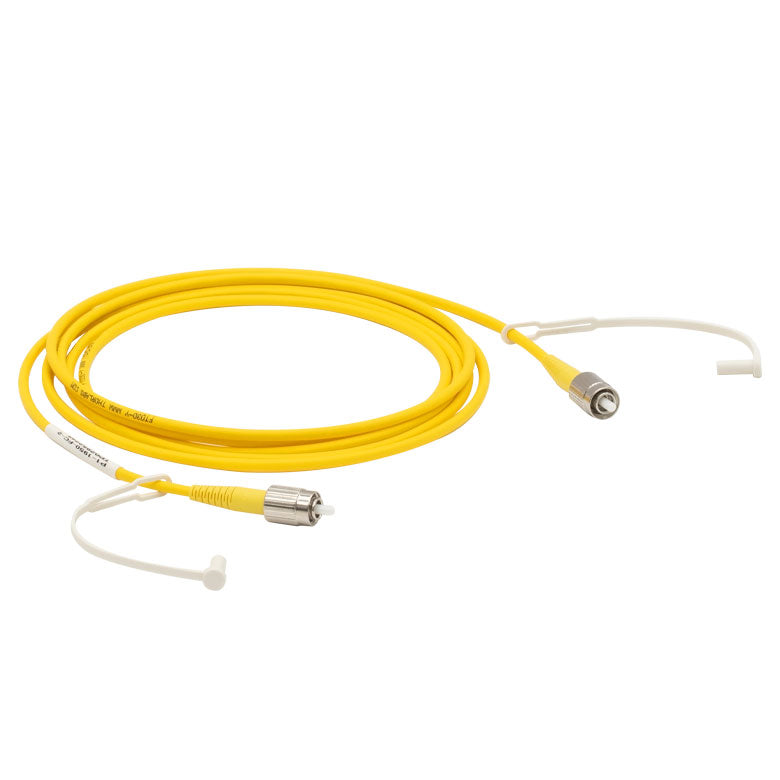

T-P1-980A-FC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC, Ø3 mm Jacket, 1 m Long

Fosco Connect Part No.: T-P1-980A-FC-1

  • $ 125.00 or



T-P1-980A-FC-1 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC, Ø3 mm Jacket, 1 m Long

Product Drawing

  • SM Patch Cables for Signal Transmission from 320 nm to 2200 nm

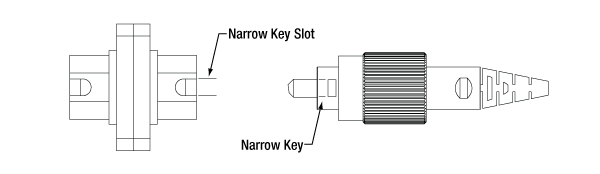

  • FC/PC 2.0 mm Narrow Key Connectors on Both Ends
  • Low Back Reflections (High Return Loss): 50 dB (Typ.)
  • Available from Stock
  • Two Dust Caps Included
  • Fiber Type SM980-5.8-125
  • Operating Wavelength 980 - 1550 nm
  • Cutoff Wavelength 870 - 970 nm
  • Mode Field Diameter 5.3 - 6.4 µm @ 980 nm
  • Cladding Diameter 125 ± 1.0 µm
  • Coating Diameter 245 ± 15 µm
  • Max Attenuation ≤2.0 dB/km
  • NA 0.13 - 0.15
  • Connectors FC/PC, 2.0 mm Narrow Key
  • Jacket Ø3 mm Yellow PVC Furcation Tubing
