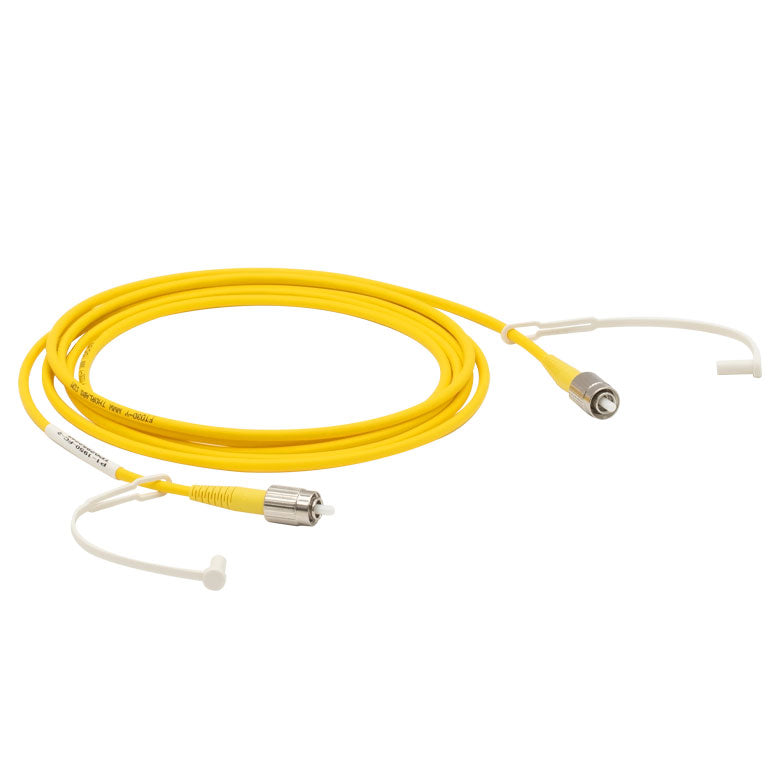

T-P1-980A-FC-5 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC, Ø3 mm Jacket, 5 m Long
T-P1-980A-FC-5 - Single Mode Patch Cable, 980 - 1550 nm, FC/PC, Ø3 mm Jacket, 5 m Long
- SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
- FC/PC 2.0 mm Narrow Key Connectors on Both Ends
- Low Back Reflections (High Return Loss): 50 dB (Typ.)
- Available from Stock
- Two Dust Caps Included
- Fiber Type SM980-5.8-125
- Operating Wavelength 980 - 1550 nm
-
Cutoff Wavelength 870 - 970 nm
- Mode Field Diameter 5.3 - 6.4 µm @ 980 nm
- Cladding Diameter 125 ± 1.0 µm
- Coating Diameter 245 ± 15 µm
- Max Attenuation ≤2.0 dB/km
- NA 0.13 - 0.15

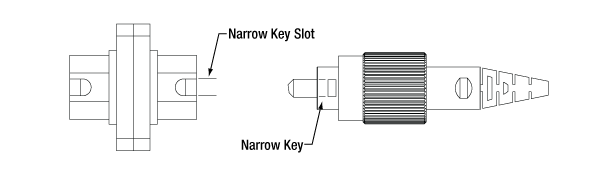

- Connectors FC/PC, 2.0 mm Narrow Key
- Jacket Ø3 mm Yellow PVC Furcation Tubing
