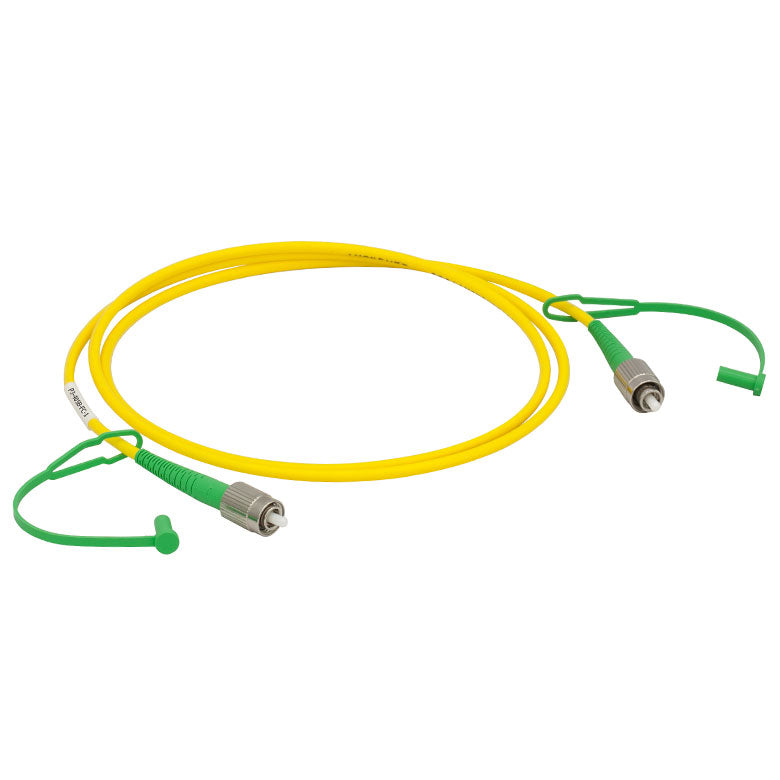

T-P3-405B-FC-1 - Single Mode Patch Cable, 405 - 532 nm, FC/APC, Ø3 mm Jacket, 1 m Long
T-P3-405B-FC-1 - Single Mode Patch Cable, 405 - 532 nm, FC/APC, Ø3 mm Jacket, 1 m Long

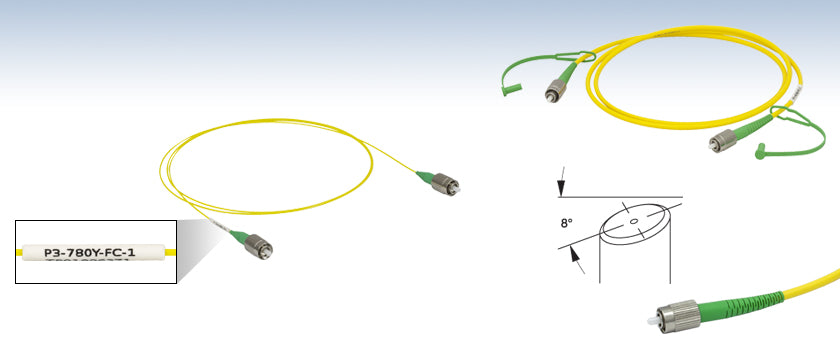

- FC/APC Narrow Key (2.0 mm) Connectors
- High Return Loss (Low Back Reflection) of 60 dB (Typical)
- 0.3 dB Connector to Connector Loss for Telecom Wavelengths
- Available from Stock
- Cables with Ø3 mm or Ø900 µm Jackets Available
- Two Dust Caps Included
- Fiber Type SM400
- Operating Wavelength 405 - 532 nm
- Cutoff Wavelength 305 - 400 nm
- Mode Field Diameter 2.5 - 3.4 µm @ 480 nm
- Cladding Diameter 125 ± 1.0 µm
- Coating Diameter 245 ± 15 µm
-
Max Attenuation ≤50 dB/km @ 430 nm, ≤30 dB/km @ 532 nm
- NA 0.12-0.14
- Connectors FC/APC, 2.0 mm Narrow Key
- Jacket Ø3 mm Yellow PVC Furcation Tubing
