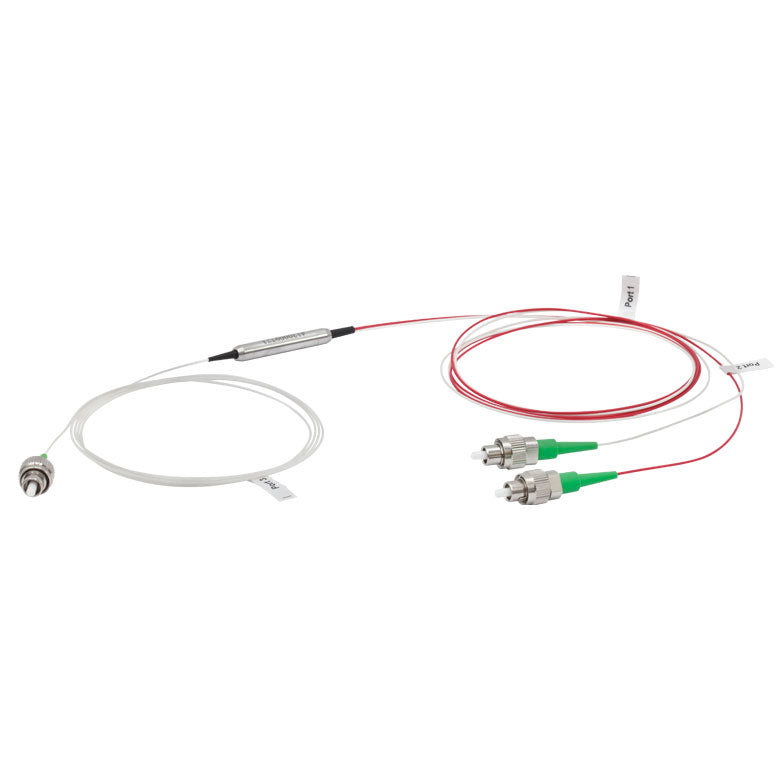

T-PBC780SM-APC - Fiber PBC, 780 ± 20 nm, 1 SM and 2 PM Ports, FC/APC
T-PBC780SM-APC - Fiber PBC, 780 ± 20 nm, 1 SM and 2 PM Ports, FC/APC
- Combine or Split Orthogonal Polarizations in Fiber Optic Systems
- High Extinction Ratio
- Bidirectional: One Single Mode Port and Two Polarization-Maintaining Ports
- 1 m of Ø900 µm Jacketed Fiber on Each Leg
- Choose from FC/PC or FC/APC Connectors
| General Specifications | |
|---|---|
| Return Loss | FC/PC Connectors: ≥40 dB FC/APC Connectors: ≥45 dB |
| Damage Threshold | 300 mW (CW) |
| Fiber Length | 1 m on Each Leg |
| Length Tolerance | +0.075 m / -0 m |
| Jacket | Ø900 µm Loose Furcation Tubing |
| Size | 1.38 " x Ø0.22" (35.0 mm x Ø5.5 mm) |
| Connector Keys | Narrow (2.0 mm); Aligned to Slow Axis for all PM Fiber Legs |
| Item # | Wavelength | Insertion Loss | Extinction Ratio | Fiber Type | Connectors | |||
|---|---|---|---|---|---|---|---|---|
| Combiner | Splitter | Splitter | Port 1 | Port 2 | Port 3 | |||
| T-PBC780SM-FC | 780 ± 20 nm | ≤3.1 dB | ≤6.1 dB | ≥18 dB | SM85-PS-U25D | SM85-PS-U25D | HI780C | FC/PC |
| T-PBC780SM-APC | 780 ± 20 nm | ≤3.1 dB | ≤6.1 dB | ≥18 dB | SM85-PS-U25D | SM85-PS-U25D | HI780C | FC/APC |
