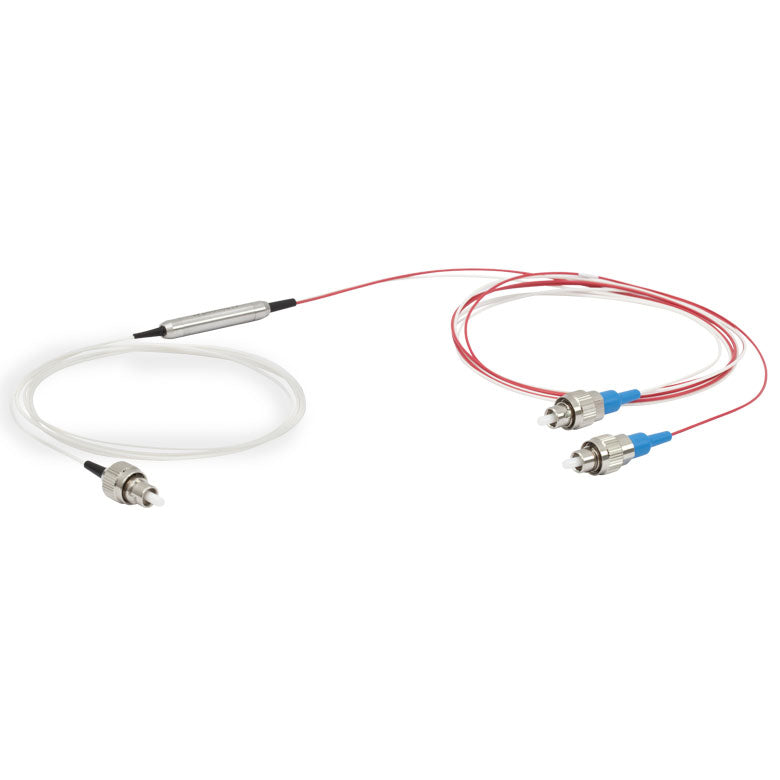

T-PBC780SM-FC - Fiber PBC, 780 ± 20 nm, 1 SM and 2 PM Ports, FC/PC

Fosco Connect Part No.: T-PBC780SM-FC

  • $ 1,050.00 or



T-PBC780SM-FC - Fiber PBC, 780 ± 20 nm, 1 SM and 2 PM Ports, FC/PC

  • Combine or Split Orthogonal Polarizations in Fiber Optic Systems
  • High Extinction Ratio
  • Bidirectional: One Single Mode Port and Two Polarization-Maintaining Ports
  • 1 m of Ø900 µm Jacketed Fiber on Each Leg
  • Choose from FC/PC or FC/APC Connectors
General Specifications
Return Loss FC/PC Connectors: ≥40 dB
FC/APC Connectors: ≥45 dB
Damage Threshold 300 mW (CW)
Fiber Length 1 m on Each Leg
Length Tolerance +0.075 m / -0 m
Jacket Ø900 µm Loose Furcation Tubing
Size 1.38 " x Ø0.22" (35.0 mm x Ø5.5 mm)
Connector Keys Narrow (2.0 mm);
Aligned to Slow Axis for all PM Fiber Legs



Item # Wavelength Insertion Loss Extinction Ratio Fiber Type Connectors
Combiner Splitter Splitter Port 1 Port 2 Port 3
T-PBC780SM-FC 780 ± 20 nm ≤3.1 dB ≤6.1 dB ≥18 dB SM85-PS-U25D SM85-PS-U25D HI780C FC/PC
T-PBC780SM-APC 780 ± 20 nm ≤3.1 dB ≤6.1 dB ≥18 dB SM85-PS-U25D SM85-PS-U25D HI780C FC/APC
