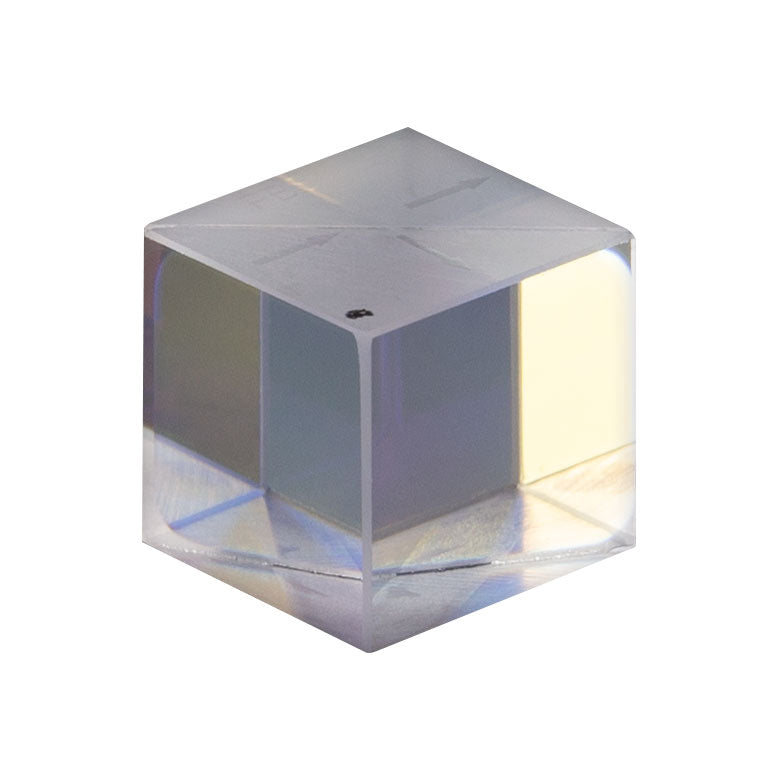

T-PBS10-633 - 10 mm Polarizing Beamsplitter Cube, 633 nm
T-PBS10-633 - 10 mm Polarizing Beamsplitter Cube, 633 nm
| Item # | T-PBS10-532 | T-PBS10-633 | T-PBS10-780 | T-PBS10-1064 | T-PBS10-1550 | |
|---|---|---|---|---|---|---|
| Design Wavelength | 532 nm | 633 nm | 780 nm | 1064 nm | 1550 nm | |
| Cube Size | 10.0 mm x 10.0 mm x 10.0 mm | |||||
| Clear Aperture | >8.0 mm x 8.0 mm | |||||
| Transmitted Wavefront Error |
<λ/4 at 633 nm over Ø8.0 mm | |||||
|
AR Coating Reflectance (0° AOI) |
Rabs < 0.25% @ 532 nm |
Rabs < 0.25% @ 633 nm |
Rabs < 0.25% @ 780 nm |
Rabs < 0.25% @ 1064 nm |
Rabs < 0.25% @ 1550 nm |
|
|
Damage Thresholds |
CW | 100 W/cm @ 532 nm (Ø1.000 mm) |
- | - | 1.5 kW/cm @ 1070 nm (Ø1.012 mm) |
1.5 kW/cm @ 1540 nm (Ø0.087 mm) |
| Pulsed | 2 J/cm2 @ 532 nm (10 ns, 10 Hz, Ø0.470 mm) |
- | - | 2 J/cm2 @ 1064 nm (10 ns, 10 Hz, Ø0.517 mm) |
- | |
| Surface Quality | 40-20 Scratch-Dig | |||||
