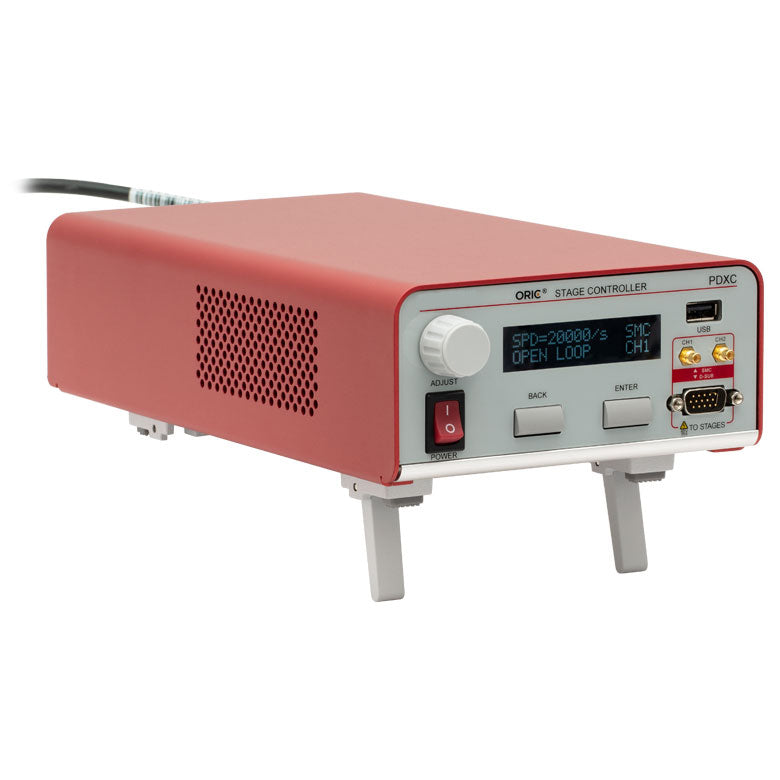

T-PDXC - Multi-Stage ORIC® Piezo Inertia Stage Controller
T-PDXC - Multi-Stage ORIC® Piezo Inertia Stage Controller
- Controller for ORIC Piezo Inertia Linear Stages and PDR1C(/M) Rotation Stage
- Supports Both Open- and Closed-Loop Operation
- SMC and 15-Pin D-Sub Ports Available
Key Specifications | ||
---|---|---|
SMC Port | Number of Ports | Two |
Voltage | 0 to 40 V | |
Frequency | 20 kHz Max | |
D-Sub Port | Number of Ports | One |
Voltage | -10 to 50 V | |
Frequency | 20 kHz Max | |
Max Current Limit | 10 A | |
Front USB | Type A, USB Host 2.0 | |
Back USB | Type B, USB Device 2.0 | |
Voltage of Analog In/Out | -10 to 10 V, ±2% | |
Voltage of Trigger In/Out | 0 to 5 V, TTL | |
Input Power | 100 - 240 VAC, 50 - 60 Hz |
