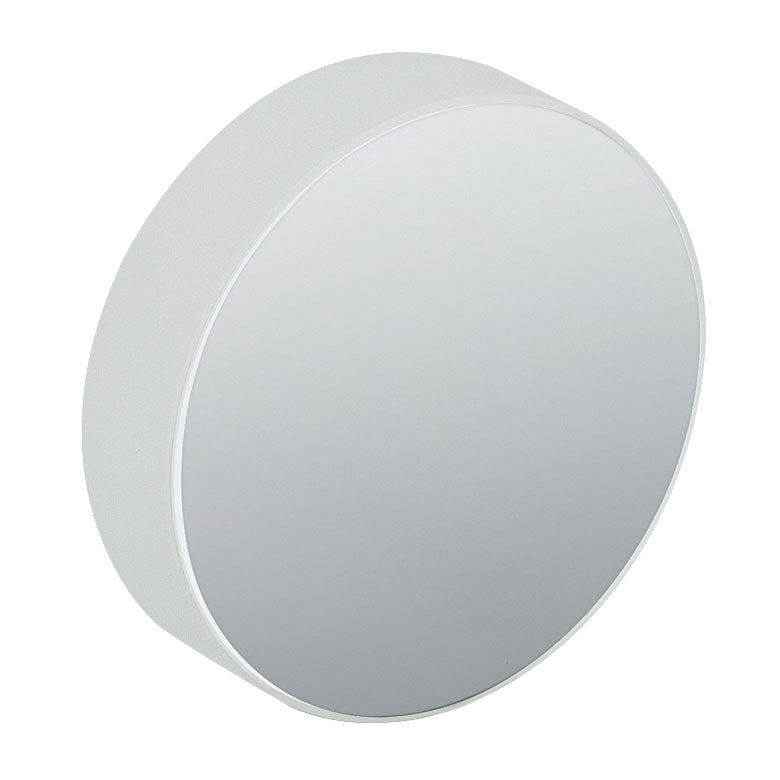

T-PF10-03-G01 - Ø1" Protected Aluminum Mirror
T-PF10-03-G01 - Ø1" Protected Aluminum Mirror
| Item # | T-PF10-03-G01 |
|---|---|
| Diameter | 1" (25.4 mm) |
| Diameter Tolerance | +0.0 mm / -0.1 mm |
| Thickness | 6.0 mm (0.24") |
| Thickness Tolerance | ±0.2 mm |

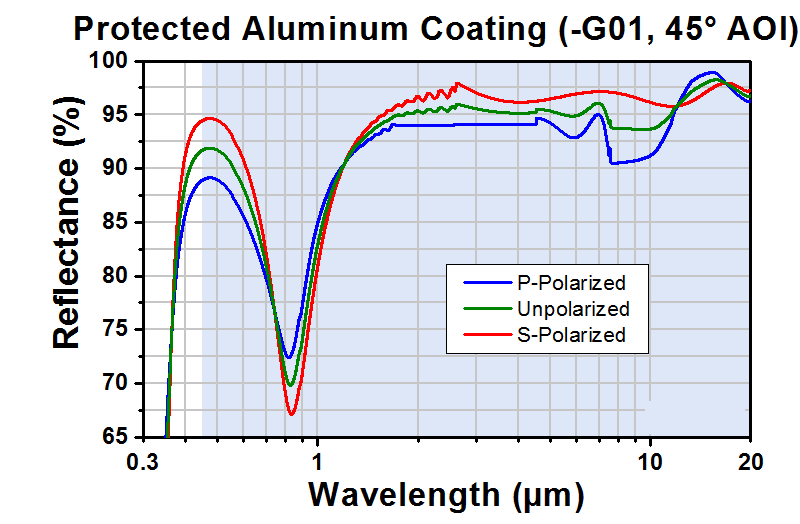

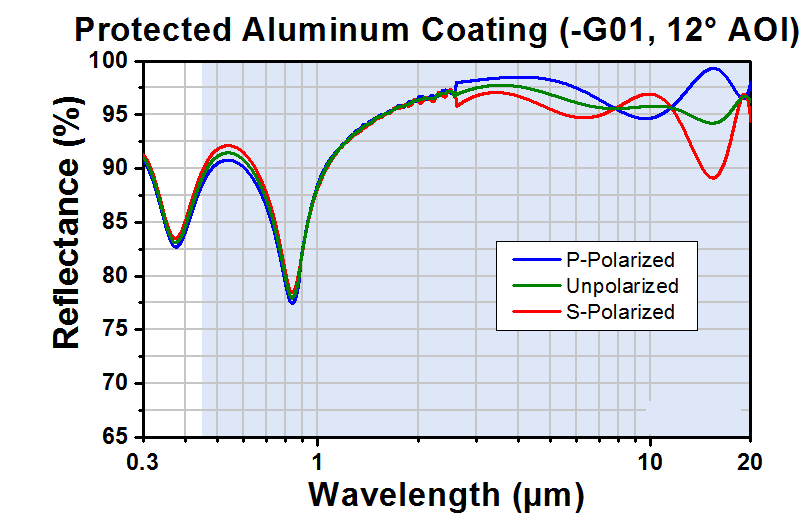

| Reflectance | Ravg >90% from 450 nm - 2 µm Ravg >95% from 2 - 20 µm |
| Substrate | Fused Silica |
| Flatness (Peak to Valley) | λ/10 @ 633 nm |
| Parallelism | <3 arcmin |
| Clear Aperture | >90% of Diameter |
| Damage Threshold (Pulsed) | 0.3 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø1.000 mm |
| Damage Threshold (CW)a | 100 W/cm at 1.070 µm, Ø0.098 mm 350 W/cm at 10.6 µm, Ø0.339 mm |
