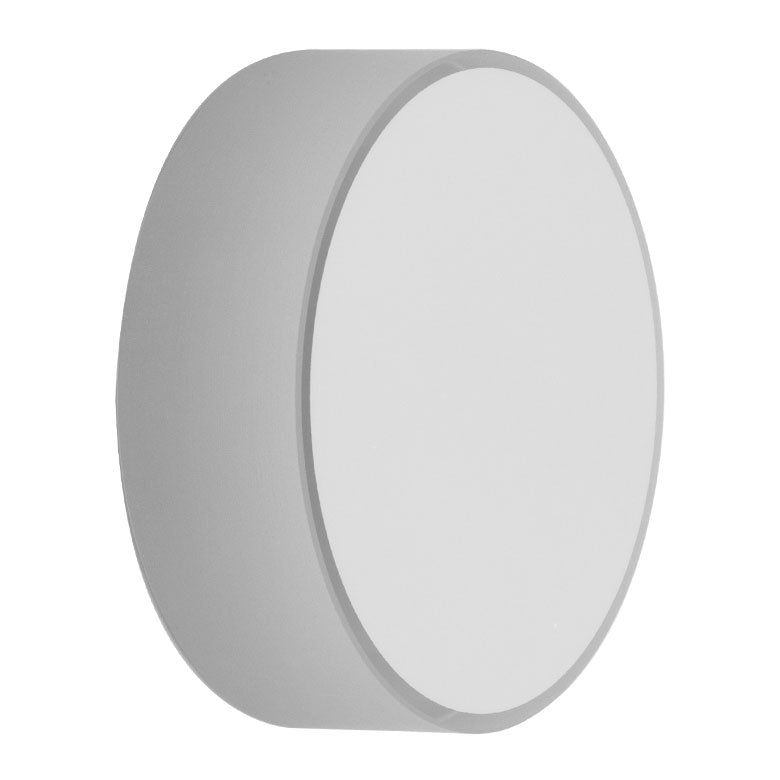

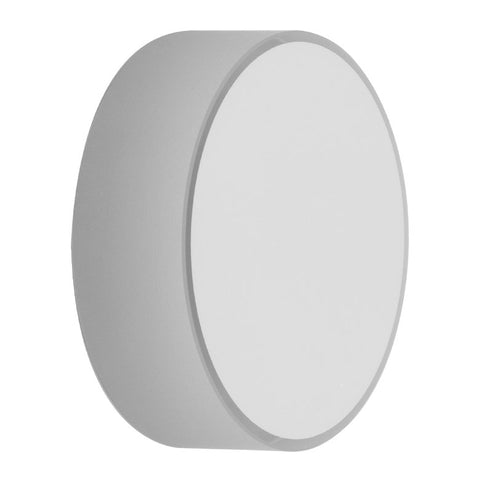

T-PF15-03-P01 - Ø1.5" Protected Silver Mirror

Fosco Connect Part No.: T-PF15-03-P01

  • $ 142.00 or



T-PF15-03-P01 - Ø1.5" Protected Silver Mirror

Product Drawing

  • Silver Coating Highly Reflects in Visible and NIR Range
    • Ravg > 97% for 450 nm - 2 µm;
    • Ravg > 95% for 2 - 20 µm
  • Protective SiO2 Overcoat Protects from Oxidation
  • Available Round, Square, Rectangular, or in Packages of 10 Rounds
Damage Threshold Specifications
Coating Designation (Item # Suffix) Damage Threshold
-P01 (Pulsed) 0.225 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.167 mm)
1 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.010 mm)
-P01 (CW) 500 W/cm (1.07 µm, Ø0.974 mm)
1500 W/cm (10.6 µm, Ø0.339 mm)



Item # T-PF15-03-P01
Diameter 1.5"
(38.1 mm)
Diameter Tolerance +0.0 mm / -0.1 mm
Thickness 12.0 mm (0.47")
Thickness Tolerance ±0.2 mm
Reflectance (Average) >97% for 450 nm - 2 µm, >95% for 2 - 20 µm
Substrate Fused Silica
Surface Flatness
(Peak to Valley)
λ/10 @ 633 nm
Surface Quality 40-20 Scratch-Dig
Parallelism <3 arcmin
Clear Aperture >90% of Diameter
Damage
Threshold
Pulsed 0.225 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.167 mm)
1 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.010 mm)
CW 500 W/cm (1.07 µm, Ø0.974 mm)
1500 W/cm (10.6 µm, Ø0.339 mm)
