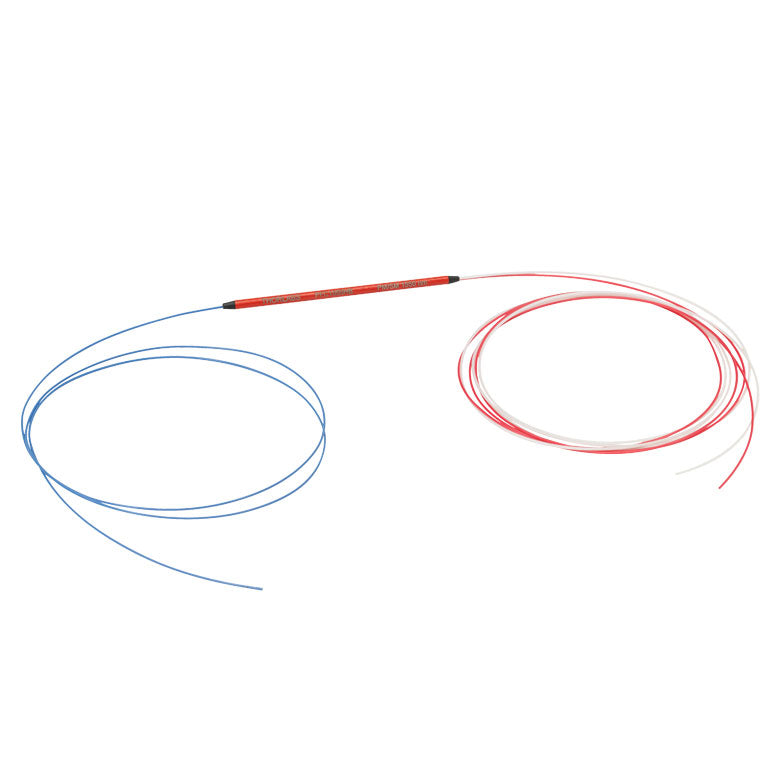

T-PFC1550HB - PM to SM Fused Fiber Polarization Combiner, 1550 ± 15 nm, No Connectors
T-PFC1550HB - PM to SM Fused Fiber Polarization Combiner, 1550 ± 15 nm, No Connectors
| Fiber Polarization Combiner Specifications | |
|---|---|
| Center Wavelength | 1550 nm |
| Bandwidth | ±15 nm |
| Insertion Loss |
≤0.65 dB (Typ.) |
| Optical Return Loss (ORL) / Directivity |
≥60 dB |
| Max Power Level | 1 W (Bare Fiber) 5 W (Spliced) |
| Fiber Type | White & Red Ports: PANDA Blue Common Port: Single Mode |
| Fiber | White & Red Ports: Equivalent to PM 15-U25D Blue Common Port: SMF-28e |
| Port Configuration | 2x1 |
| Fiber Lead Length and Tolerance | 0.8 m +0.075 m / -0.0 m |
| Connectors | No Connectors, Scissor Cut |
| Package Size | Ø0.12" x 2.95" (Ø3.2 mm x 75.0 mm) |
| Jacket | Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load | 10 N |
| Operating Temperature Range | -40 to 85 °C |
| Storage Temperature Range | -40 to 85 °C |
