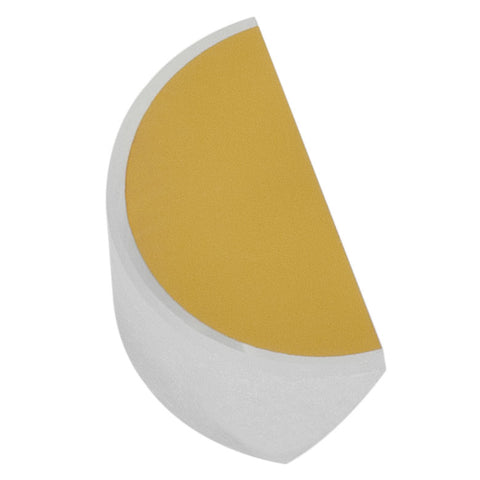

T-PFD05-03-M01 - Ø1/2" Protected Gold D-Shaped Mirror

Fosco Connect Part No.: T-PFD05-03-M01

  • $ 81.00 or



T-PFD05-03-M01 - Ø1/2" Protected Gold D-Shaped Mirror

  • Choose from Nine Coatings:
    • UV-Enhanced Aluminum: 250 - 450 nm
    • Protected Silver: 450 nm - 20 µm
    • Ultrafast-Enhanced Silver: 750 nm - 1000 nm
    • Protected Gold: 800 nm - 20 µm
    • MIR-Enhanced Gold: 2 μm - 20 μm
    • -E01 Broadband Dielectric Coating: 350 - 400 nm
    • -E02 Broadband Dielectric Coating: 400 - 750 nm
    • -E03 Broadband Dielectric Coating: 750 - 1100 nm
    • -E04 Broadband Dielectric Coating: 1280 - 1600 nm
  • Choose from Ø1/2" or Ø1" Versions
  • Ideal for Use with Closely Spaced Beams
  • Reflective Coating Beveled 0.1 mm at Straight Edge

Product Drawing

Protected gold coatings are ideal for use over the entire IR range, with an average reflectance in excess of 96% for 800 nm - 20 µm. A protective SiO2 overcoat is layered over the gold to make it damage resistant and easy to clean.

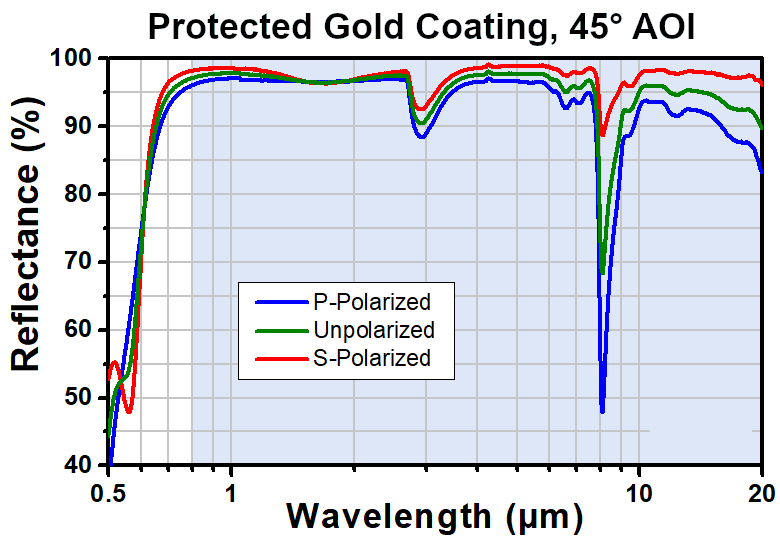

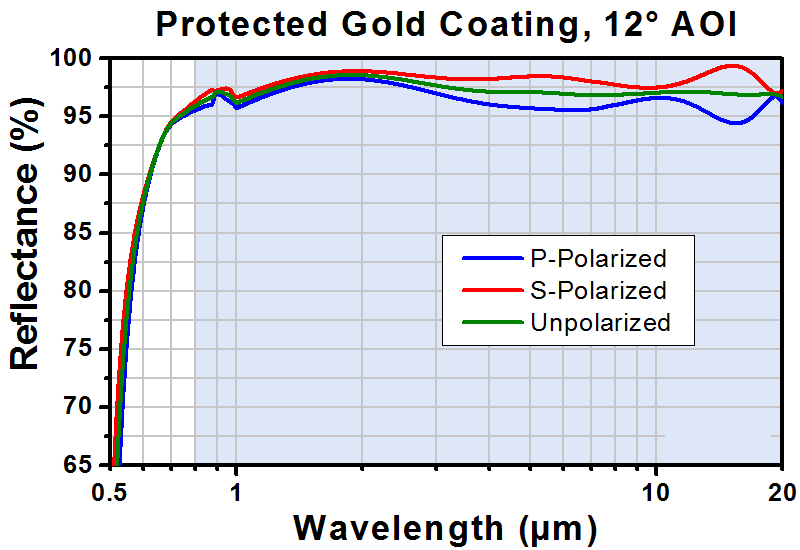

The plot to the right shows the measured reflectivity of protected gold as a function of wavelength. The shaded region denotes the range over which we recommend using these optics. Data was obtained using at a 45° angle of incidence.

Damage Threshold Specifications
Coating Designation
(Item # Suffix)
Type Damage Threshold
-M01 Pulsed 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm)
CW 500 W/cm (1.070 µm, Ø0.089 mm)
750 W/cm (10.6 µm, Ø0.339 mm)



Coating Protected Gold
Item # T-PFD05-03-M01 T-PFD10-03-M01
Coating Range 800 nm - 20 µm
Diameter Ø1/2" Ø1"
Diameter Tolerance +0.0/-0.1 mm
Thickness 6.0 mm ± 0.2 mm
Substrate Fused Silica
Front Surface Flatness λ/10 @ 633 nm
Surface Quality 40-20 Scratch-Dig
Clear Aperture >90% of Diameter
Reflectance Ravg > 96% from 800 nm - 20 μm
Parallelism ≤5 arcmin
Damage Threshold (Pulse) 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm)
Damage Threshold (CW) 500 W/cm (1.070 µm, Ø0.089 mm)
750 W/cm (10.6 µm, Ø0.339 mm)
