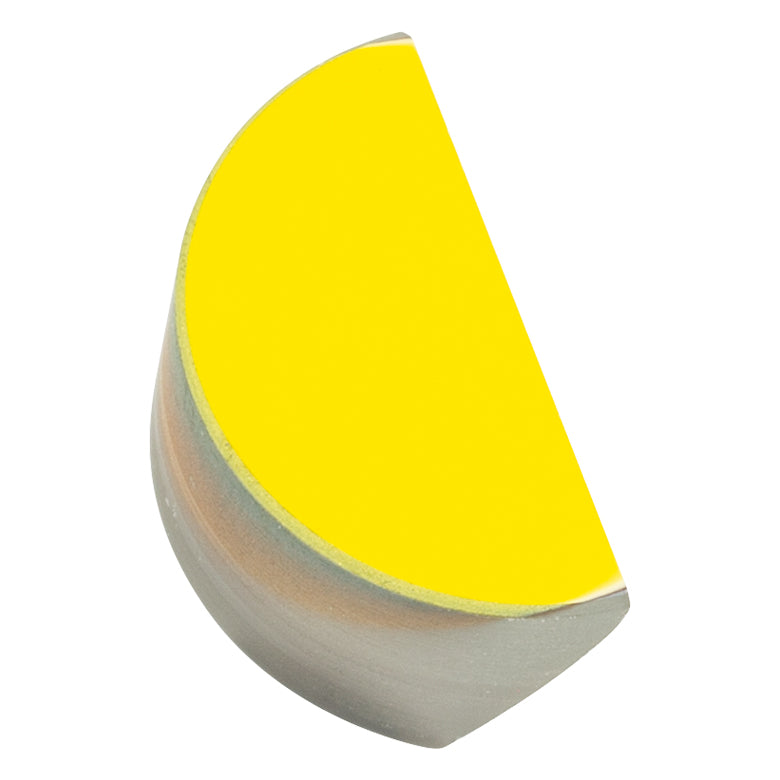

T-PFD05-03-M02 - Ø1/2" MIR-Enhanced Gold D-Shaped Mirror, 2 - 20 µm

Fosco Connect Part No.: T-PFD05-03-M02

  • $ 102.00 or



T-PFD05-03-M02 - Ø1/2" MIR-Enhanced Gold D-Shaped Mirror, 2 - 20 µm

  • Choose from Nine Coatings:
    • UV-Enhanced Aluminum: 250 - 450 nm
    • Protected Silver: 450 nm - 20 µm
    • Ultrafast-Enhanced Silver: 750 nm - 1000 nm
    • Protected Gold: 800 nm - 20 µm
    • MIR-Enhanced Gold: 2 μm - 20 μm
    • -E01 Broadband Dielectric Coating: 350 - 400 nm
    • -E02 Broadband Dielectric Coating: 400 - 750 nm
    • -E03 Broadband Dielectric Coating: 750 - 1100 nm
    • -E04 Broadband Dielectric Coating: 1280 - 1600 nm
  • Choose from Ø1/2" or Ø1" Versions
  • Ideal for Use with Closely Spaced Beams
  • Reflective Coating Beveled 0.1 mm at Straight Edge

Product Drawing

Mid-Infrared-Enhanced Gold Mirrors offer >98% average reflectance and >95% absolute reflectance between 2 µm to 20 µm, without suffering losses found with protected gold mirrors. The overcoat on these mirrors allows them to perform better than our unprotected gold mirrors in the mid-infrared (MIR), while offering resistance to physical damages.

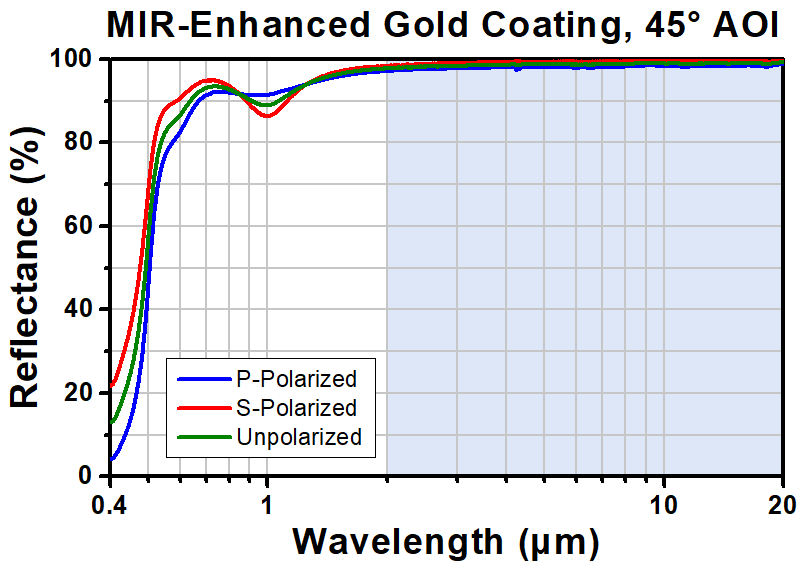

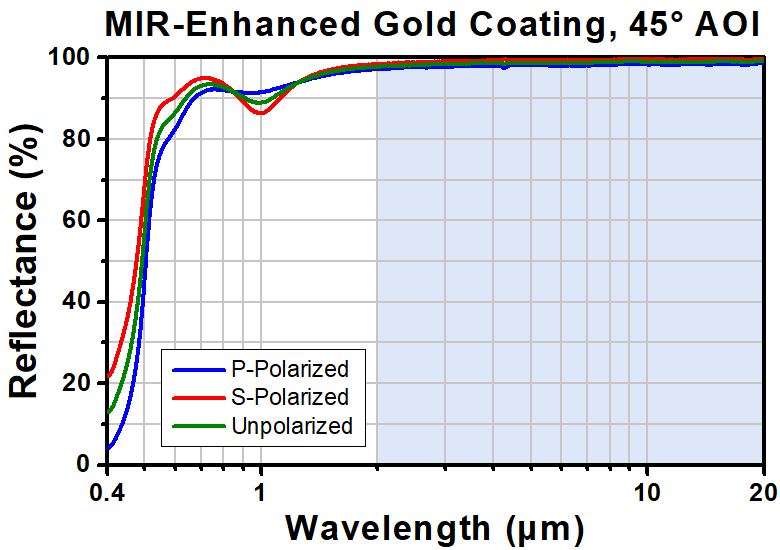

The plot to the right shows the measured reflectance of this coating as a function of wavelength. The shaded region denotes the range over which we recommend using these optics. Data was obtained using at a 45° angle of incidence.

Damage Threshold Specifications
Coating Designation
(Item # Suffix)
Type Damage Threshold
-M02 Pulsed 0.1 J/cm2 (1.064 µm, 10 ns, 10 Hz, Ø1.06 mm)
3 J/cm2 (10.6 µm, 100 ns, 1 Hz, Ø1.29 mm)
CW 25 W/cm (1.07 µm, Ø1.04 mm)
450 W/cm (10.6 µm, Ø1.18 mm)



Coating MIR-Enhanced Gold
Item # PFD05-03-M02 PFD10-03-M02
Coating Range 2 - 20 µm
Diameter Ø1/2" Ø1"
Diameter Tolerance +0.0/-0.1 mm
Thickness 6.0 mm ± 0.2 mm
Substrate Fused Silica
Front Surface Flatness λ/10 @ 633 nm
Surface Quality 40-20 Scratch-Dig
Clear Aperture >90% of Diameter
Reflectance Ravg > 98%a and Rabs> 95%a from 2 μm - 20 μm
Parallelism ≤5 arcmin
Damage Threshold (Pulse) 0.1 J/cm2 (1.064 µm, 10 ns, 10 Hz, Ø1.06 mm)
3 J/cm(10.6 µm, 100 ns, 1 Hz, Ø1.29 mm)
Damage Threshold (CW) 25 W/cm (1.07 µm, Ø1.04 mm)
450 W/cm (10.6 µm, Ø1.18 mm)
