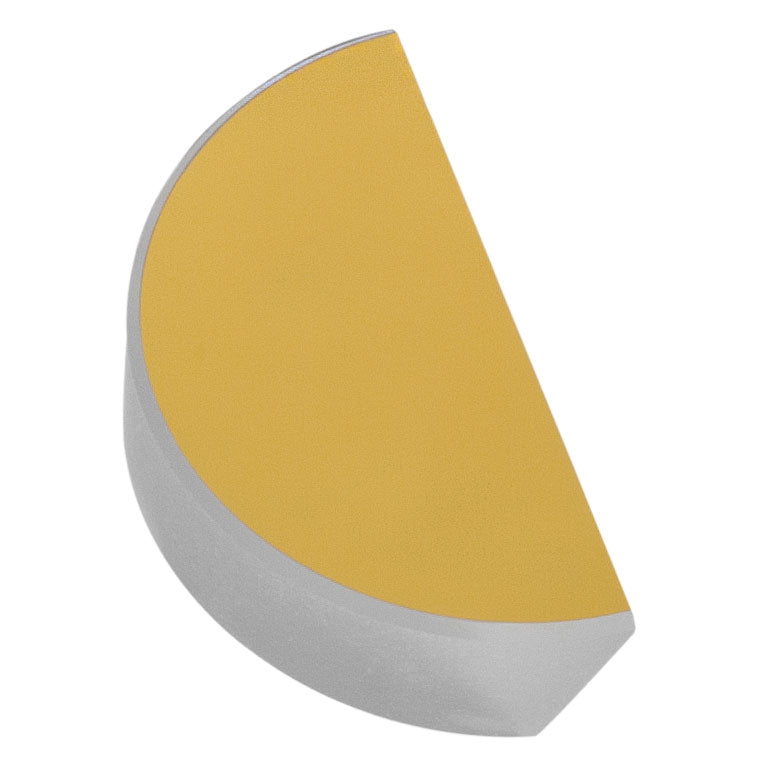

T-PFD10-03-M01 - Ø1" Protected Gold D-Shaped Mirror
T-PFD10-03-M01 - Ø1" Protected Gold D-Shaped Mirror
- Choose from Nine Coatings:
- UV-Enhanced Aluminum: 250 - 450 nm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1000 nm
- Protected Gold: 800 nm - 20 µm
- MIR-Enhanced Gold: 2 μm - 20 μm
- -E01 Broadband Dielectric Coating: 350 - 400 nm
- -E02 Broadband Dielectric Coating: 400 - 750 nm
- -E03 Broadband Dielectric Coating: 750 - 1100 nm
- -E04 Broadband Dielectric Coating: 1280 - 1600 nm
- Choose from Ø1/2" or Ø1" Versions
- Ideal for Use with Closely Spaced Beams
- Reflective Coating Beveled 0.1 mm at Straight Edge
Protected gold coatings are ideal for use over the entire IR range, with an average reflectance in excess of 96% for 800 nm - 20 µm. A protective SiO2 overcoat is layered over the gold to make it damage resistant and easy to clean.

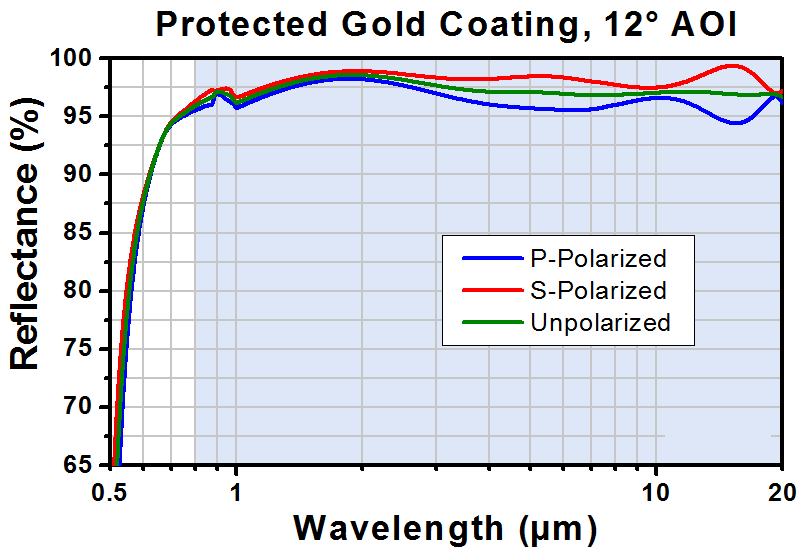

The plot to the right shows the measured reflectivity of protected gold as a function of wavelength. The shaded region denotes the range over which we recommend using these optics. Data was obtained using at a 45° angle of incidence.
| Damage Threshold Specifications | ||
|---|---|---|
| Coating Designation (Item # Suffix) |
Type | Damage Threshold |
| -M01 | Pulsed | 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm) |
| CW | 500 W/cm (1.070 µm, Ø0.089 mm) 750 W/cm (10.6 µm, Ø0.339 mm) |
| Coating | Protected Gold | |
|---|---|---|
| Item # | T-PFD05-03-M01 | T-PFD10-03-M01 |
| Coating Range | 800 nm - 20 µm | |
| Diameter | Ø1/2" | Ø1" |
| Diameter Tolerance | +0.0/-0.1 mm | |
| Thickness | 6.0 mm ± 0.2 mm | |
| Substrate | Fused Silica | |
| Front Surface Flatness | λ/10 @ 633 nm | |
| Surface Quality | 40-20 Scratch-Dig | |
| Clear Aperture | >90% of Diameter | |
| Reflectance | Ravg > 96% from 800 nm - 20 μm | |
| Parallelism | ≤5 arcmin | |
| Damage Threshold (Pulse) | 2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm) | |
| Damage Threshold (CW) | 500 W/cm (1.070 µm, Ø0.089 mm) 750 W/cm (10.6 µm, Ø0.339 mm) |
|
