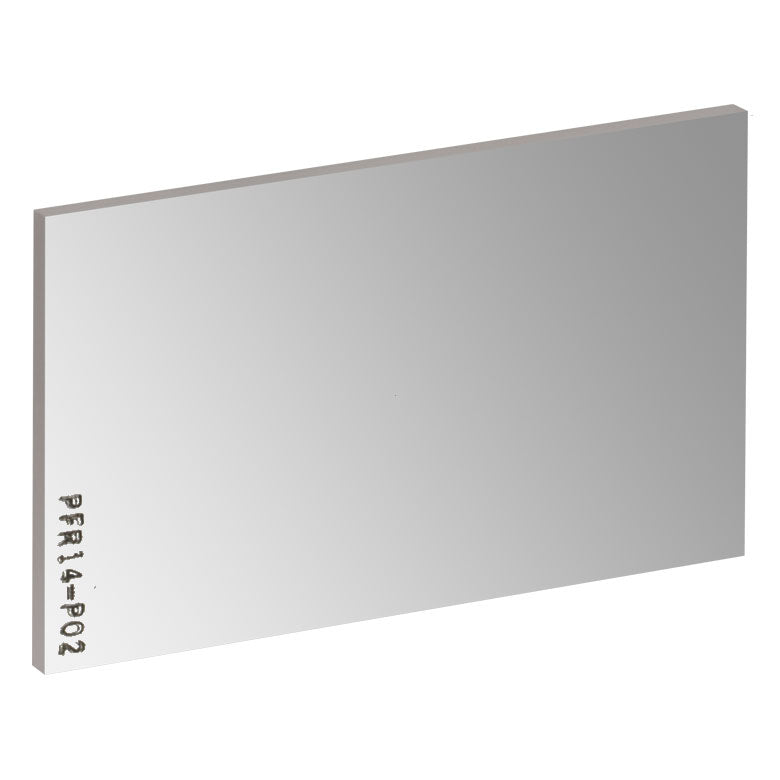

T-PFR14-P02 - 35 mm x 52 mm Protected Silver Mirror
T-PFR14-P02 - 35 mm x 52 mm Protected Silver Mirror
| Item # | T-PFR14-P02 | |
|---|---|---|
| Face Dimensions | 35.0 mm x 52.0 mm (1.38" x 2.05") |
|
| Face Dimensions Tolerance | ±0.1 mm | |
| Thickness | 2.0 mm (0.08") | |
| Thickness Tolerance | ±0.1 mm | |
| Reflectance (Average) | >97% for 450 nm - 2 µm >95% for 2 - 20 µm |
|
| Substrate | UV Fused Silica | |
|
Surface Flatness (Peak to Valley) |
λ/4 @ 633 nm | |
| Surface Quality | 10-5 Scratch-Dig | |
| Parallelism | <3 arcmin | |
| Clear Aperture | 90%, Elliptical | |
| Damage Threshold |
Pulsed | - |
| CW | - | |
