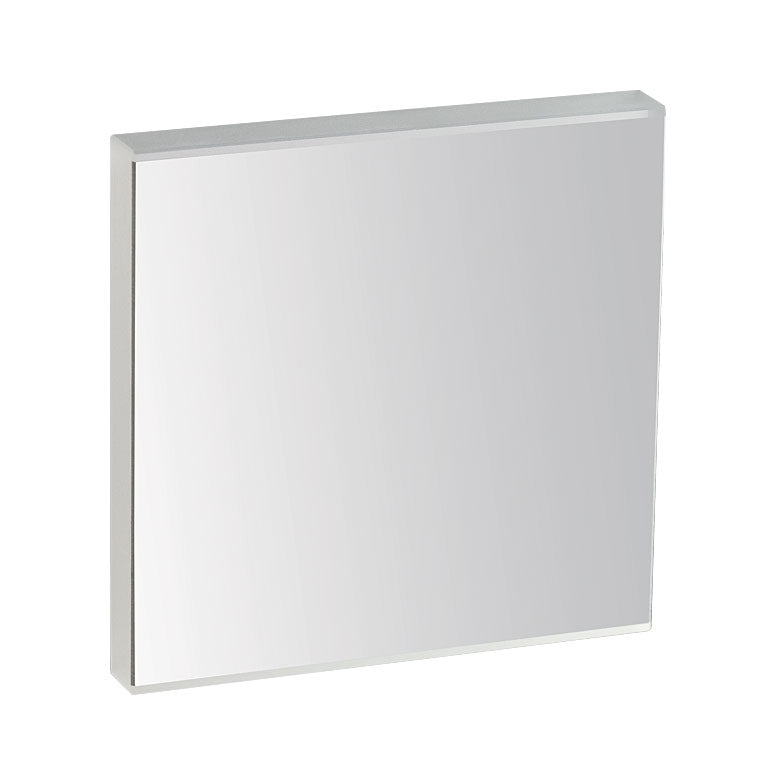

T-PFSQ20-03-P01 - 2" x 2" Protected Silver Mirror

Fosco Connect Part No.: T-PFSQ20-03-P01

  • $ 210.00 or



T-PFSQ20-03-P01 - 2" x 2" Protected Silver Mirror

Product Drawing

Item # T-PFSQ20-03-P01
Face Dimensions 2" x 2"
(50.8 mm x 50.8 mm)
Face Dimensions Tolerance +0.0 mm / -0.1 mm
Thickness 6.0 mm (0.24")
Thickness Tolerance +0.0 mm / -0.1 mm
Reflectance (Average) >97% for 450 nm - 2 µm
>95% for 2 - 20 µm
Substrate UV Fused Silica
Surface Flatness
(Peak to Valley)
λ/8 @ 633 nm
Surface Quality 40-20 Scratch-Dig
Parallelism <3 arcmin
Clear Aperture >90% of Dimension
Damage
Threshold
Pulsed 0.225 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.167 mm)
1 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.010 mm)
CW 500 W/cm (1.07 µm, Ø0.974 mm)
1500 W/cm (10.6 µm, Ø0.339 mm)
