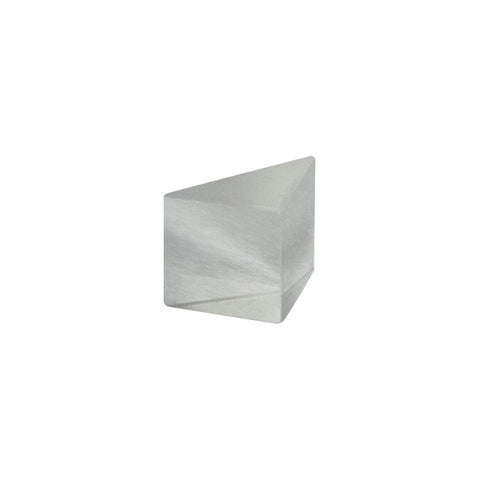

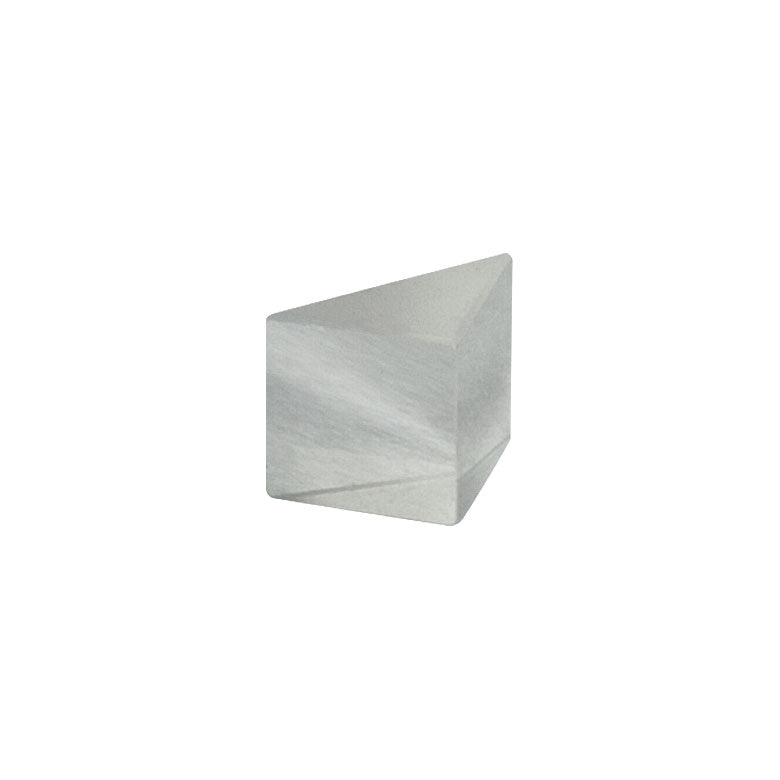

T-PS605 - UV Fused Silica Right Angle Prism, Uncoated, L = 3 mm
T-PS605 - UV Fused Silica Right Angle Prism, Uncoated, L = 3 mm
Material UV Fused Silica
L 3 mm
X 4.2mm
Angle Tolerance ±10 arcmin
Dimensional Tolerance ±0.2 mm
Choose a UV Fused Silica Right-Angle Prism if your application would benefit from higher transmission in the UV or a lower coefficient of thermal expansion.

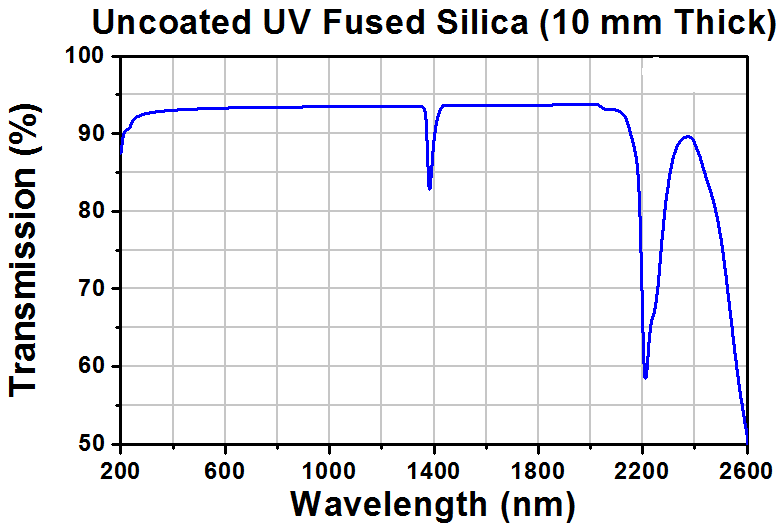

UV-grade fused silica offers high transmission in the deep UV and exhibits virtually no laser-induced fluorescence (as measured at 193 nm), making it an ideal choice for applications from the UV to the near IR.
For a given wavelength, UV fused silica also has a lower index of refraction than N-BK7.
| PS911K Knife-Edge Prism Specifications | |
|---|---|
| Material | N-BK7 |
| Clear Aperture (Legs) |
Entire Face Length And Width Excluding a 1.25 mm Border Along Beveled Edges (No Bevel Between the Two Legs) |
| Clear Aperture (Hypotenuse) |
90% of Face Length and Width |
| Surface Quality | 20-10 Scratch-Dig |
| Surface Flatness @ 633 nm |
λ/8 |
| Number of Polished Faces | 3 (Triangular Faces are Fine Ground) |
