T-PS608 - UV Fused Silica Right-Angle Prism, Uncoated, L = 20 mm

Fosco Connect Part No.: T-PS608

  • $ 145.00 or



T-PS608 - UV Fused Silica Right-Angle Prism, Uncoated, L = 20 mm

Product Drawing

  • Sizes Ranging from 3 mm to 60 mm
  • Fabricated from N-BK7, UV Fused Silica, CaF2, or ZnSe
  • N-BK7 Prisms Available with an AR Coating on the Hypotenuse or Both Legs

General Specifications

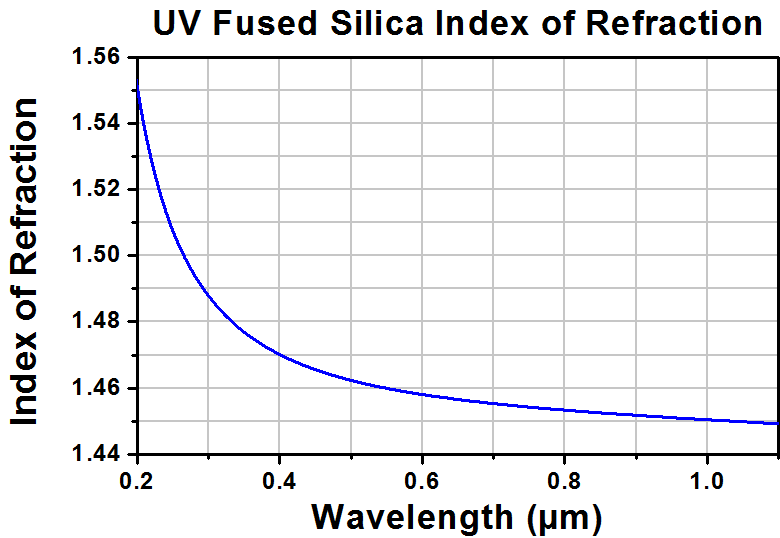

  • Material UV Fused Silica
  • Clear Aperture 70% of Face Length and Width
  • Surface Quality 40-20 Scratch-Dig
  • Surface Flatness λ/10 at 633 nm
  • Number of Polished Faces 3 (Triangular Faces are Fine Ground)

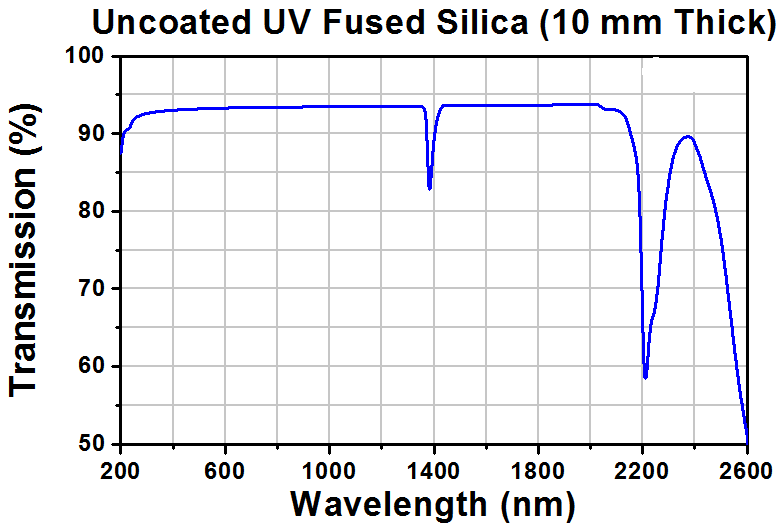

Uncoated Prisms

  • Material UV Fused Silica
  • 20 mm,  X 28.3 mm
  • Angle Tolerance ±3 arcmin
  • Dimensional Tolerance ±0.2 mm
