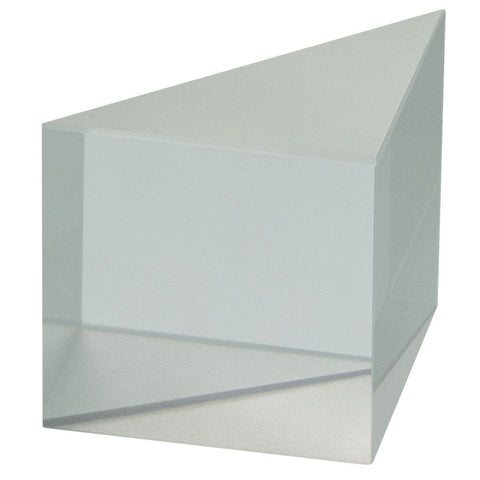

T-PS615 - UV Fused Silica Right-Angle Prism, Uncoated, L = 15 mm
T-PS615 - UV Fused Silica Right-Angle Prism, Uncoated, L = 15 mm
- Sizes Ranging from 3 mm to 60 mm
- Fabricated from N-BK7, UV Fused Silica, CaF2, or ZnSe
- N-BK7 Prisms Available with an AR Coating on the Hypotenuse or Both Legs
General Specifications
- Clear Aperture 70% of Face Length and Width
- Surface Quality 40-20 Scratch-Dig
- Surface Flatness λ/10 at 633 nm
- Number of Polished Faces 3 (Triangular Faces are Fine Ground)
Uncoated Prisms

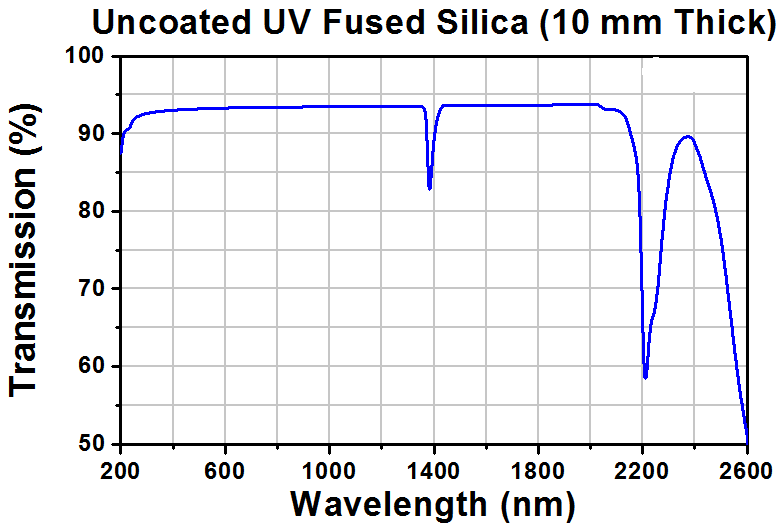

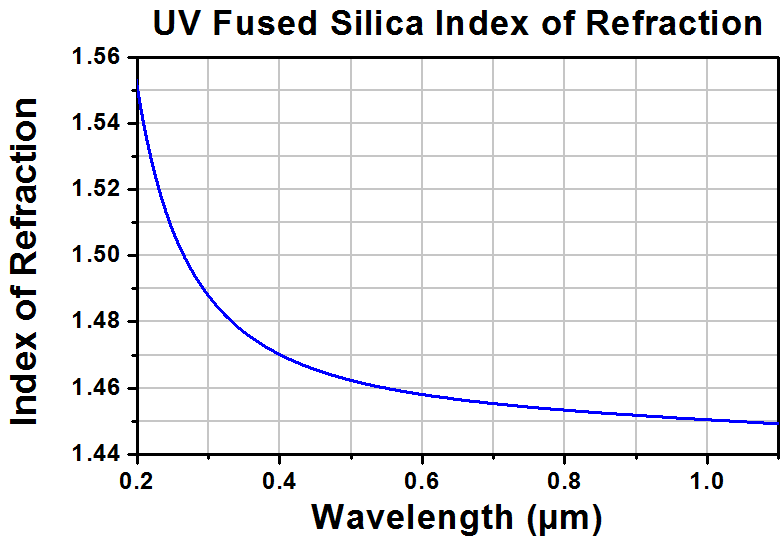

- Material UV Fused Silica
- L 14 mm
- X 21.2 mm
- Angle Tolerance ±3 arcmin
- Dimensional Tolerance ±0.2 mm
